| | 1960 - 1969 |
| 830 Series | | Standard-tread tractor |
|
Series map:
840
73.3hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed gear |
| 8-speed torque converter |
| Transmission |
| Transmission | Dual Range
|
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Oil capacity | 9 qts (Eagle Hitch)
8.5 L
|
| | 68 qts
64.4 L
|

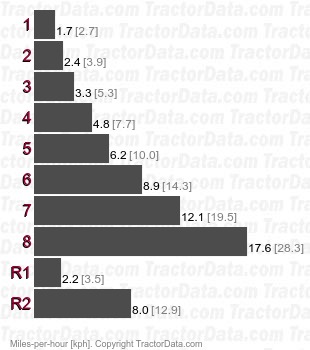

| Speeds |
|
| Transmission |
| Transmission | Case-O-Matic
|
| Type | torque converter
|
| Gears | 8 forward and 2 reverse
|
| Clutch | wet disc
|

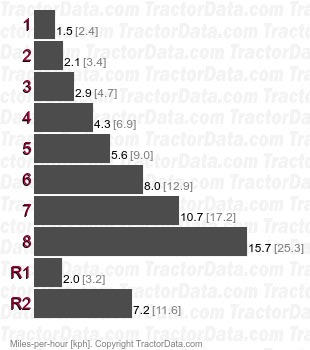

| Speeds |
|
