J.I. Case 711-B Tests


J.I. Case 711-B tractor photo
1958 - 1960
700B Series
Row-Crop tractor
Series map:
711-B
58.0hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 678: gasoline 8-speed 2WD
NTTL 694: LP gas 8-speed 2WD

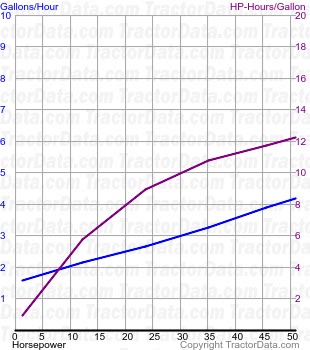

Nebraska Tractor Test 678
Gasoline 8-speed 2WD
October 27 - November 13, 1958
Link: Nebraska Tractor Test 678 file
PTO performance
Max power52.19 hp
38.9 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power46.64 hp
34.8 kW
Gear 5 used for power test.
Max pull7,565 lbs
3431 kg
Gear 1 used for pull test.

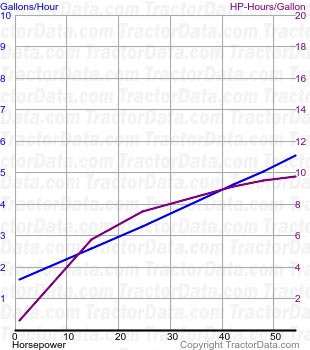

Nebraska Tractor Test 694
LP gas 8-speed 2WD
April 22 - May 15, 1959
Link: Nebraska Tractor Test 694 file
PTO performance
Power at rated engine speed53.31 hp
39.8 kW
Fuel use5.4 gal/hour
20.4 l/hour
Power at rated PTO speed52.07 hp
38.8 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power47.96 hp
35.8 kW
Fuel use5.5 gal/hour
20.8 l/hour
Gear 5 used for power test.
Max pull7,493 lbs
3398 kg
Gear 2 used for pull test.
