J.I. Case 541


J.I. Case 541 tractor photo
1960 - 1969
530 Series
Row-Crop tractor
Production
ManufacturerJ.I. Case
Row-Crop tractor
FactoriesRacine, Wisconsin, USA
 Rock Island, Illinois, USA
Original price$5,200 (1969)
Variants
530diesel standard
531diesel row-crop
540gas standard
541gas row-crop
J.I. Case 541 Engines
J.I. Case 2.6L 4-cyl gasoline
J.I. Case 2.6L 4-cyl LP-gas
Fuel tank22 gal
83.3 L
Engine details ...
J.I. Case 541 Transmissions
12-speed
8-speed torque converter
4-speed gear
8-speed mechanical shuttle
Transmission details ...
J.I. Case 541 Power
PTO (claimed)40 hp
29.8 kW
Plows3-4
Drawbar (tested)36.37 hp
27.1 kW
PTO (tested)41.26 hp
30.8 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
Steeringpower OptOptional
Mechanical disc brakes
Open operator station.
Tractor hitch
Rear TypeI
Controlposition and depth control
Power Take-off (PTO)
Rear PTOtransmission
 independent OptOptional
Rear PTO Type540 (1.375)
Dimensions & Tires
Wheelbase83.75 inches (tricycle)
212 cm
 81.5 inches (wide front)
207 cm
Weight4,345 lbs
1970 kg
Front tire5.50-16
Rear tire12.4-28
Full dimensions and tires ...
541 Serial Number Location

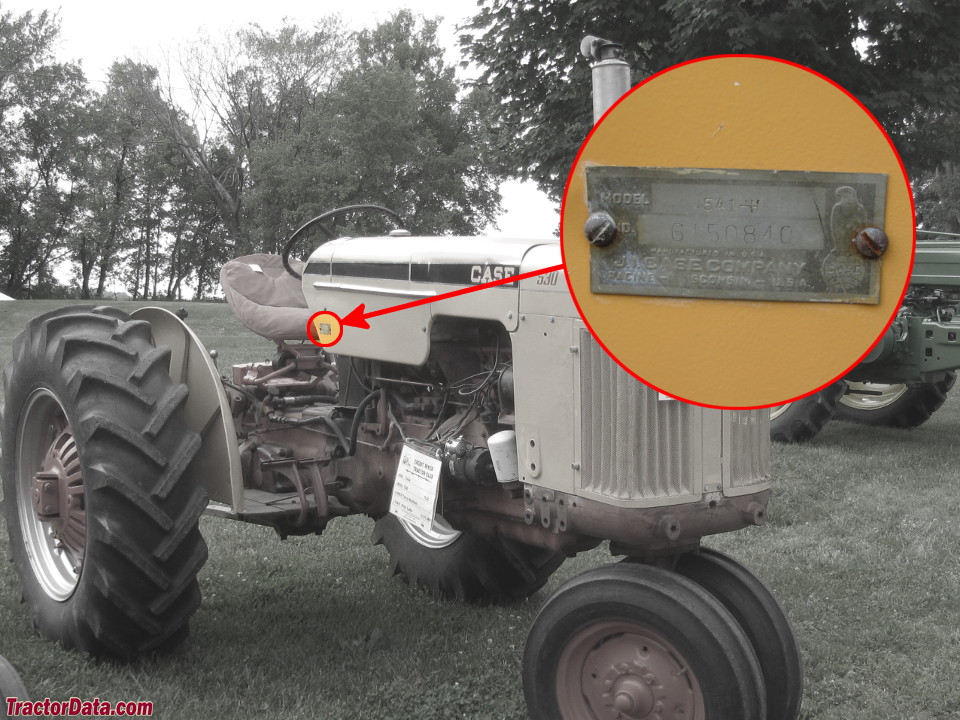

J.I. Case 541 serial number location
Serial number plate on right side of tractor instrument panel.
541 Serial Numbers
19606144001
19616162601
19628190001
19638208001
19648229001
19658253501
19668279001
19678306501
19688332101
19698356251

FAQ: How to read a serial number table.
References
541 references literature
295 / 391 / 392 Loaders published in 1966, by J.I. Case
430 - 530: 3-4 plow Draft-o-matic models published in 1966, by J.I. Case
530 published in 1965, by J.I. Case
1960 Progress Parade of Case Farm Equipment published by J.I. Case
A Complete New Line of Case Plus-Powered Tractors published in 1960, by J.I. Case
1965 Buyers Guide published by J.I. Case
Buyers Guide for '67 published in 1967, by J.I. Case
