J.I. Case 511-B Transmission


J.I. Case 511-B tractor photo
1958 - 1960
500B Series
Row-Crop tractor
Series map:
511-B
50.0hp*
*Estimated engine power for comparison only.
Transmission options
4-speed gear
12-speed gear
Transmission
Typegear
Gears4 forward and 1 reverse
Oil capacity44 qts
41.6 L
Speeds
With 12.4-36 rear tires.

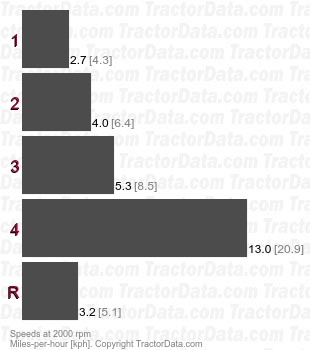

511-B  gear speeds
Transmission
TransmissionTripl-Range
Typegear
Gears12 forward and 3 reverse
Oil capacity44 qts
41.6 L
Four gears, plus reverse, in three ranges.
Speeds
With 12.4-36 rear tires.

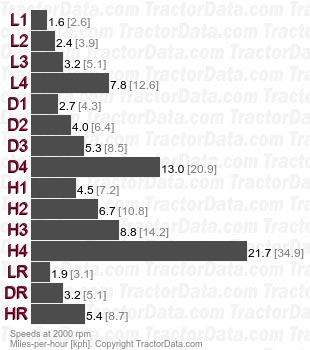

511-B Tripl-Range gear speeds
