| | 1958 - 1960 |
| 500B Series | | Row-Crop tractor |
|
Series map:
511-B
50.0hp*
*Estimated engine power for comparison only.
| Engine Detail |
| J.I. Case G164 |
| gasoline |
| 4-cylinder |
| liquid-cooled vertical I-head |
| Displacement | 164.5 ci
2.7 L
|
| Bore/Stroke | 3.6525x4.125 inches
93 x 105 mm
|
| Air cleaner | oil bath
|
| Compression | 7.3:1
|
| Rated RPM | 2000
|
| Starter | electric
|
| Starter volts | 12
|
| Coolant capacity | 12 qts
11.4 L
|

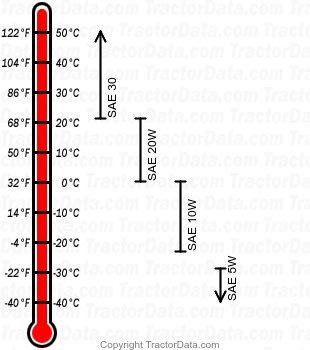

| Engine Oil |
|
| Oil capacity | 5 qts
4.7 L
|
| Oil change | 100 h
|
