J.I. Case 500 Tests


J.I. Case 500 tractor photo
1953 - 1956
Standard-tread tractor
Series map:
500
61.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 508

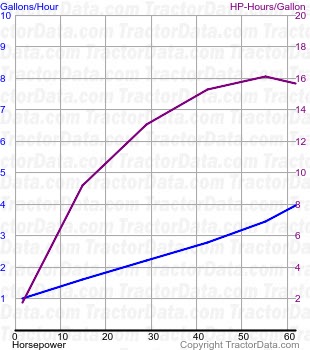

500 fuel use from test 508
Nebraska Tractor Test 508
Diesel 4-speed 2WD
October 5 - 10, 1953
Link: Nebraska Tractor Test 508 file
Belt power (max)63.81 hp
47.6 kW
Drawbar performance
Max power56.32 hp
42.0 kW
Gear 3 used for power test.
Max pull7,409 lbs
3360 kg
Gear 1 used for pull test.
