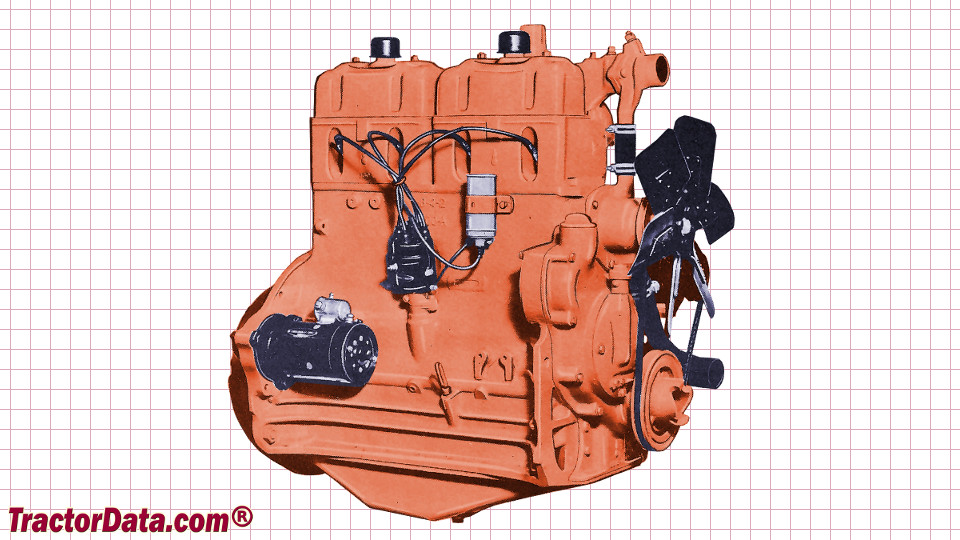

J.I. Case 413 Engine
|
|
| Engine Detail | |
| J.I. Case | |
| gasoline | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement | 251 ci 4.1 L |
| Bore/Stroke | 4.00x5.00 inches 102 x 127 mm |
| Fuel system | carburetor |
| Air cleaner | oil bath |
| Compression | 6.5:1 |
| Rated RPM | 1500 |
| Idle RPM | 600-1665 |
| Firing order | 1-3-4-2 |
| Starter volts | 6 |
| Coolant capacity | 29.6 qts 28.0 L |
| Sparkplug | Champion 8 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.012 inches (cold) 0.305 mm |
| Exhaust valve clearance | 0.020 inches (cold) 0.508 mm |

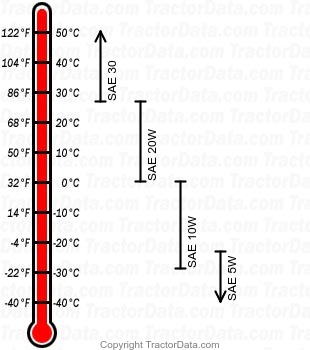

| Engine Oil | |
| |
| Oil capacity | 9 qts 8.5 L |
| J.I. Case 413 Engine | |
 |
