J.I. Case 411-B
|
|
| Production | |
| Manufacturer | J.I. Case |
| Row-Crop tractor | |
| Built in Rock Island, Illinois, USA | |
| Original price was $3,300 in 1960 | |
| Advertised as the Case 400 Case-O-Matic, the Case 411B was an upgraded version of the Case 300 row-crop with the new Case-O-Matic torque converter transmission. | |
| J.I. Case 411-B Engine | |
| J.I. Case 2.4L 4-cyl gasoline | |
 Engine details ... |
| J.I. Case 411-B Transmissions | |
| 8-speed torque converter | |
| 4-speed torque converter | |
 Transmission details ... |
| J.I. Case 411-B Power | |
| PTO (claimed) | 37 hp 27.6 kW |
| Plows | 3 |
| Drawbar (tested) | 29.72 hp 22.2 kW |
| PTO (tested) | 37.12 hp 27.7 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Differential mechanical dry disc brakes | |
| Open operator station. |

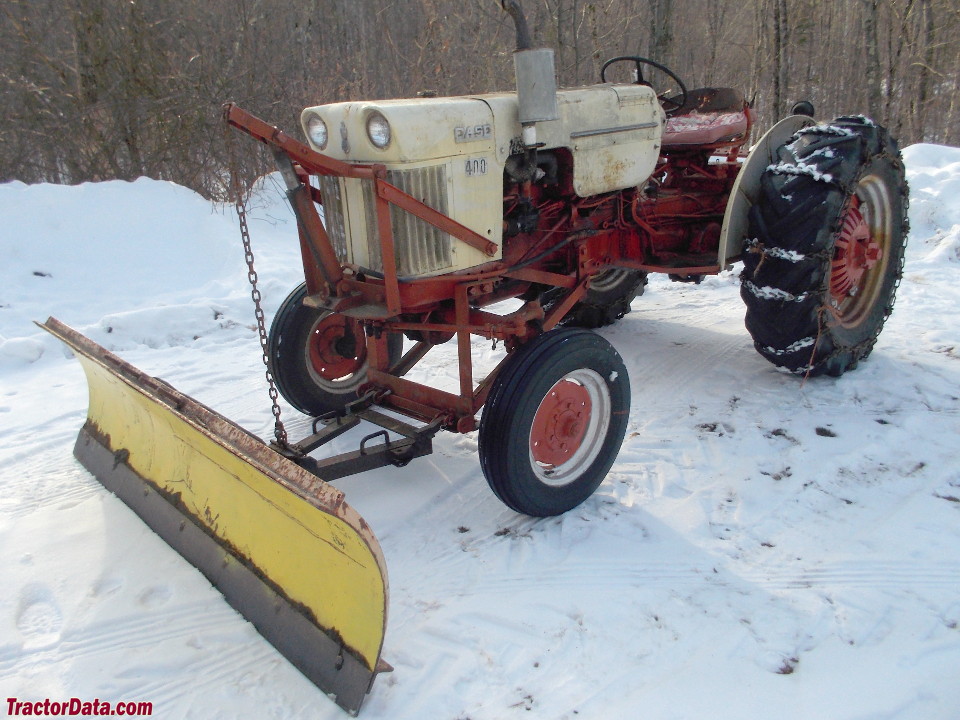

| Photos | |
 | |
 J.I. Case 411-B photos... | |
| Capacity | |
| Fuel | 13.8 gal 52.2 L |
| Hydraulic system | 3 gal 11.4 L |
| Hydraulics | |
| Type | open center |
| Capacity | 3 gal 11.4 L |
| Pressure | 1200 psi 82.7 bar |
| Tractor hitch | |
| Type | Eagle Hitch |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 541@1970 |
| Dimensions & Tires | |
| Wheelbase | 84.5 inches (tricycle) 214 cm |
| 79.5 inches (GP) 201 cm | |
| Weight | 4349 lbs 1972 kg |
| Front tire | 5.50-16 |
| Rear tire | 11-28 |
 Full dimensions and tires ... | |
| J.I. Case 411-B attachments | |
| front-end loader | |
 Attachment details ... |
| 411-B Serial Number Location | |
 | |
| Serial number plate on the left side of the tractor's instrument panel. |
| Belt Pulley | |
| Diameter | 10.25 inches 26 cm |
| Width | 6 inches 15 cm |
| RPM | 1180 |
| Speed | 3060 ft/min 932.69 meters/min |
| Electrical | |
| Ground | positive |
| Charging system | generator |
| Battery volts | 12 |
| Battery AH | 50 |
| References | |
 | |
| 300B-400B Tractors Operators Manual (9-472) published in 1958 | |
| Case-o-matic Drive 400 published in 1958, by J.I. Case | |
| J.I. Case presents published in 1957 |
