J.I. Case 411 Engine


J.I. Case 411 tractor photo
1955 - 1957
400 Series
Row-Crop tractor
Series map:
411
55.6hp*
*Estimated engine power for comparison only.
Engine options
J.I. Case 4.1L 4-cyl gasoline
J.I. Case 4.1L 4-cyl LP-gas
J.I. Case 4.1L 4-cyl distillate
Engine Detail
J.I. Case
gasoline
4-cylinder 8-valve
liquid-cooled
Displacement251 ci
4.1 L
Bore/Stroke4.00x5.00 inches
102 x 127 mm
Fuel systemcarburetor
Air cleaneroil bath
Compression6.5:1
Rated RPM1500
Idle RPM600-1665
Firing order1-3-4-2
Starter volts6
Coolant capacity29.6 qts
28.0 L
SparkplugChampion 8
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.012 inches (cold)
0.305 mm
Exhaust valve clearance0.020 inches (cold)
0.508 mm
Engine Oil

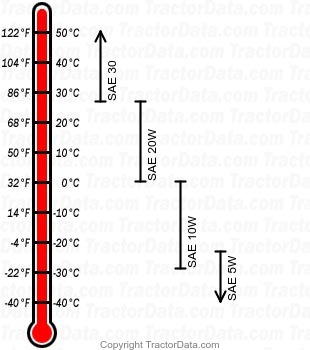

411 gasoline engine oil chart
Oil capacity9 qts
8.5 L
J.I. Case 411 Engine

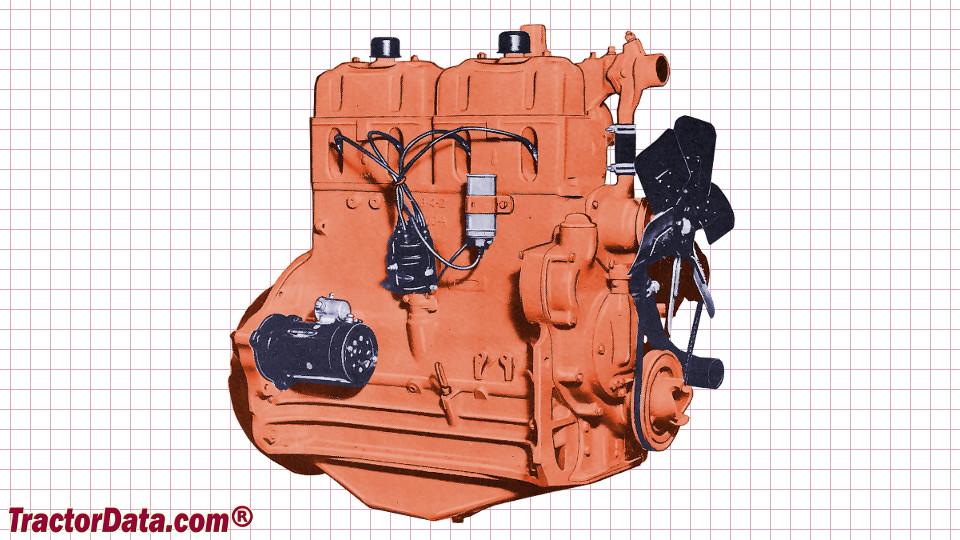

J.I. Case 411 engine image
Engine Detail
J.I. Case
LP-gas
4-cylinder
liquid-cooled
Displacement251 ci
4.1 L
Bore/Stroke4.00x5.00 inches
102 x 127 mm
Rated RPM1500
Engine Detail
J.I. Case
distillate
4-cylinder
liquid-cooled
Displacement251 ci
4.1 L
Bore/Stroke4.00x5.00 inches
102 x 127 mm
Rated RPM1500
