J.I. Case 400 Transmission


J.I. Case 400 tractor photo
1955 - 1957
400 Series
Standard-tread tractor
Series map:
400
55.6hp*
*Estimated engine power for comparison only.
Transmission
TransmissionPowr-range
Gears8 forward and 2 reverse
Oil capacity60 qts
56.8 L
Oil type
SAE 90
Four gears plus reverse, with high and low ranges. All gears and ranges selected by a single lever. A "belt-neutral" position lies between the high and low ranges, intended for stationary work. Gears 7, 8, and high reverse are locked out on tractors equipped with steel wheels.

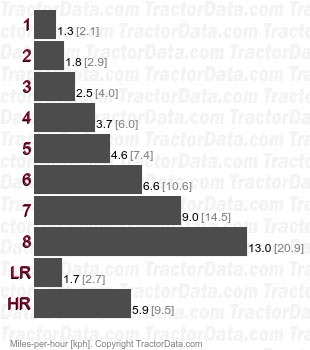

Speeds
With 13-30 rear tires.
400 Powr-range  speeds
Shift Pattern
J.I. Case 400 transmission controls
