J.I. Case 350 Engine


J.I. Case 350 tractor photo
1957
Utility tractor
Series map:
350
46.7hp*
*Estimated engine power for comparison only.
Engine Detail
J.I. Case
gasoline
4-cylinder
liquid-cooled
Displacement164.5 ci
2.7 L
Bore/Stroke3.6525x4.125 inches
93 x 105 mm
Air cleaneroil bath
Compression7.25:1
Rated RPM1900
Torque136 lb-ft
184.4 Nm
Torque RPM1300
Starter volts12
Oil capacity5 qts
4.7 L
Coolant capacity12 qts
11.4 L
J.I. Case 350 Engine

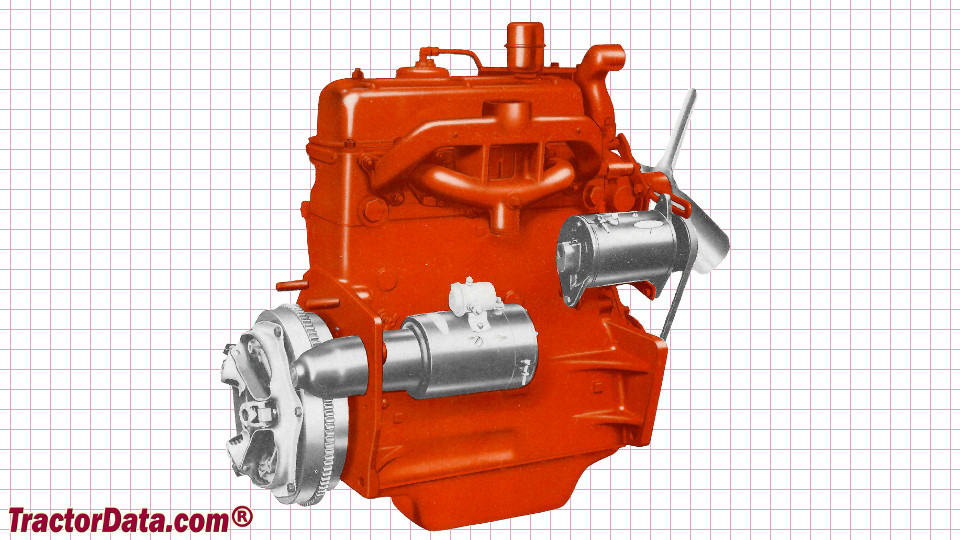

J.I. Case 350 engine image
