| | 1956 - 1958 |
| 300 Series | | Utility tractor |
|
Series map:
300
30.0hp*
*Estimated engine power for comparison only.
| Engine Detail |
| Continental GD157 |
| diesel |
| 4-cylinder |
| liquid-cooled |
| Displacement | 157 ci
2.6 L
|
| Bore/Stroke | 3.375x4.375 inches
86 x 111 mm
|
| Air cleaner | oil bath
|
| Pre-heating | ether
|
| Compression | 15.5:1
|
| Rated RPM | 1750
|
| Starter volts | 12
|
| Coolant capacity | 12 qts
11.4 L
|

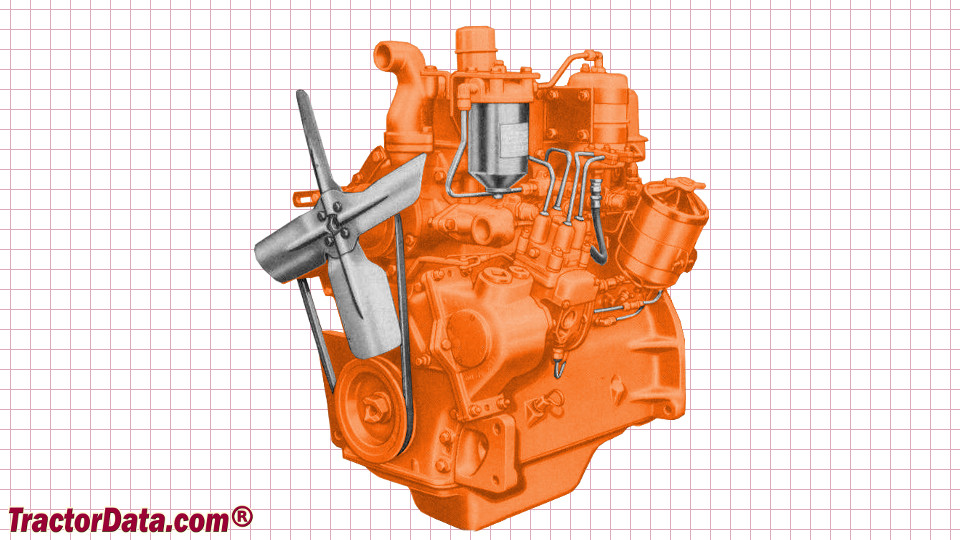

| J.I. Case 300 Engine |
 |
