J.I. Case SC Tests


J.I. Case SC tractor photo
1941 - 1954
Row-Crop tractor
Tractor Tests
NTTL 367: 2.5L distillate 4-speed 2WD
NTTL 496: 2.7L gasoline 4-speed 2WD
NTTL 497: 2.7L tractor fuel 4-speed 2WD
Nebraska Tractor Test 367
SC fuel use from test 367
Nebraska Tractor Test 367
2.5L distillate 4-speed 2WD
April 29 - May 16, 1941
Link: Nebraska Tractor Test 367 file
Belt power (max)22.29 hp
16.6 kW
Belt fuel use (max)2.3 gal/hour
8.7 l/hour
Drawbar performance
Max power19.44 hp
14.5 kW
Gear 2 used for power test.
Max pull3166 lbs
1436 kg
Gear 1 used for pull test.
Nebraska Tractor Test 496

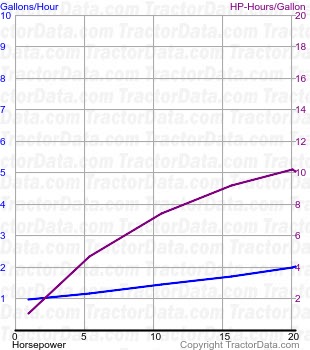

SC fuel use from test 496
Nebraska Tractor Test 496
2.7L gasoline 4-speed 2WD
June 15 - 20, 1953
Link: Nebraska Tractor Test 496 file
Belt power (max)31.71 hp
23.6 kW
Belt fuel use (max)3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power27.68 hp
20.6 kW
Gear 2 used for power test.
Max pull4072 lbs
1847 kg
Gear 1 used for pull test.
Nebraska Tractor Test 497

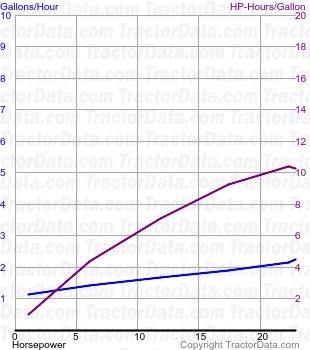

SC fuel use from test 497
Nebraska Tractor Test 497
2.7L tractor fuel 4-speed 2WD
June 16 - 26, 1953
Link: Nebraska Tractor Test 497 file
Belt power (max)25.0 hp
18.6 kW
Belt fuel use (max)2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power23.25 hp
17.3 kW
Gear 2 used for power test.
Max pull3,226 lbs
1463 kg
Gear 1 used for pull test.
