J.I. Case LA
| | 1940 - 1953 |
| Standard-tread tractor |
|
Series map:
LA
64.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | J.I. Case
|
| Standard-tread tractor |
| Built in Racine, Wisconsin, USA |
| Total built | 35,493
|
| The stout Case LA was often a candidate for re-powering with a Detroit Diesel 3-71 engine. |
| Variants |
| LA | farm
|
| LAI | industrial
|
| J.I. Case LA Engines |
| J.I. Case 6.6L 4-cyl gasoline |
| J.I. Case 6.6L 4-cyl tractor fuel |
| J.I. Case 6.6L 4-cyl LP gas |
| Fuel tank | 31 gal (gas)
117.3 L
|
| | 29 gal (tractor fuel)
109.8 L
|
| Aux. fuel | 2 gal
7.6 L
|
 Engine details ... |
| J.I. Case LA Power |
| Drawbar (claimed) | 51 hp
38.0 kW
|
| Belt (claimed) | 58 hp
43.3 kW
|
| Plows | 5
|
| Drawbar (tested) | 51.73 hp
38.6 kW
|
| Belt (tested) | 59.60 hp
44.4 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Differential mechanical disc brakes |
| Open operator station. |
| Power Take-off (PTO) |
| Rear PTO Type | 550
|

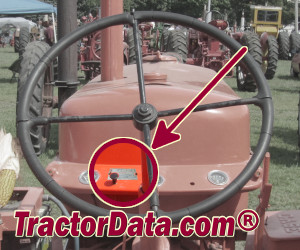

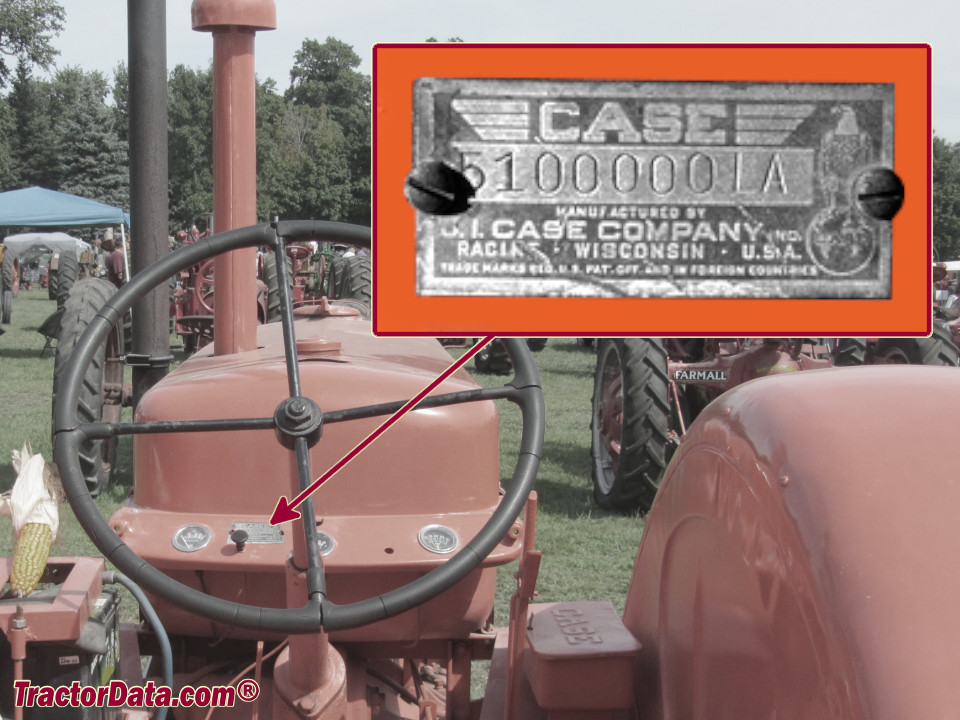

| LA Serial Numbers |
| 1940 | 4400001
|
| 1941 | 4500001
|
| 1942 | 4600001
|
| 1943 | 4700001
|
| 1944 | 4800001
|
| 1945 | 4900001
|
| 1946 | 5000001
|
| 1947 | 5100001
|
| 1948 | 5200001
|
| 1949 | 5300001
|
| 1950 | 5400001
|
| 1951 | 5500001
|
| 1952 | 5600001
|
| 1953 | 5700001
|
FAQ: How to read a serial number table.
|
| Belt Pulley |
| Diameter | 13 inches
33 cm
|
| Width | 8.25 inches
20 cm
|
| RPM | 814
|
| Speed | 2770 ft/min
844.30 meters/min
|
| References |
 |
| 4 Great Tractors published in 1945, by J.I. Case |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 31, 2024 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Transmission details ...
J.I. Case LA photos...
Full dimensions and tires ...
