Big Bud 360/30
|
|
| Production | |
| Manufacturer | Big Bud |
| Four-wheel Drive (4WD) tractor | |
| Built in Havre, Montana, USA | |
| Original price was $111,000 in 1978 | |
| Big Bud 360/30 Engine | |
| Cummins 14.0L 6-cyl diesel | |
| Fuel tank | 550 gal 2081.8 L |
 Engine details ... | |
| Big Bud 360/30 Transmission | |
| 6-speed power shift | |
 Transmission details ... |
| Big Bud 360/30 Power | |
| Engine | 360 hp 268.5 kW |
| Mechanical | |
| Four-wheel drive | |
| Articulated power steering | |
| Pneumatic drum brakes | |
| Cruiser Cab standard. |

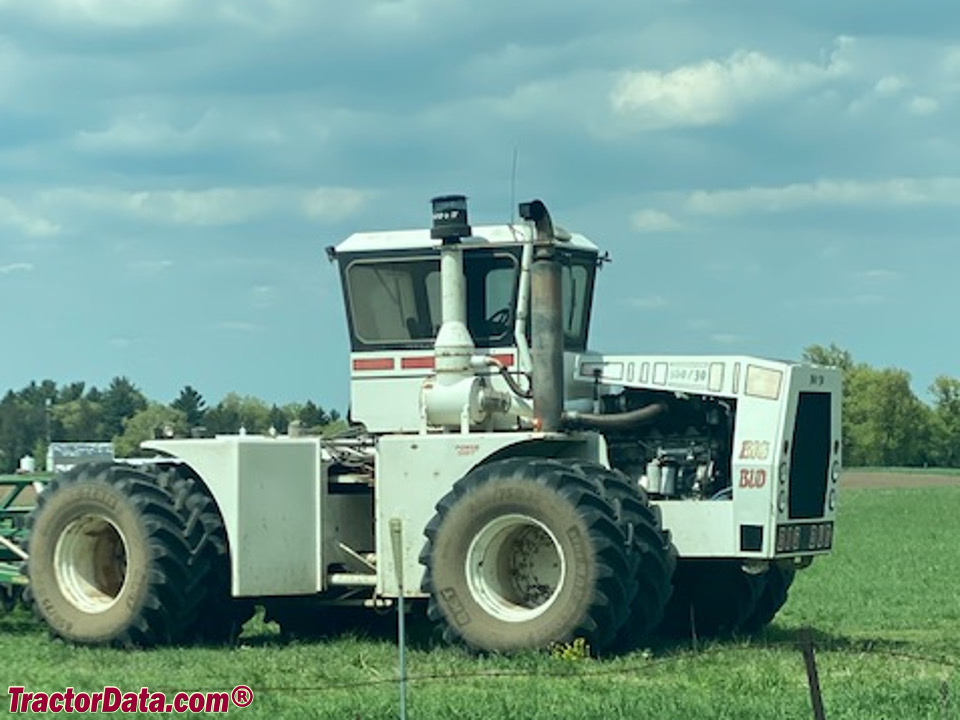

| Photos | |
 | |
 Big Bud 360/30 photos... | |
| Hydraulics | |
| Type | closed center load sensing |
| Valves | 4 |
| Pump flow | 36 gpm 136.3 lpm |
| Steering flow | 35 gpm 132.5 lpm |
| Dimensions & Tires | |
| Wheelbase | 150 inches 381 cm |
| Weight | 39000 lbs 17690 kg |
| Front tire | 24.5-32 |
| Rear tire | 24.5-32 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 75 |
| Battery volts | 12 |
| References | |
 | |
| 360/30 360/10 published in 1978, by Big Bud | |
| Size Us Up published in 1979, by Big Bud |
