Tractors > International Harvester > 3688

International Harvester 3688 Tests



International Harvester 3688 tractor photo
1981 - 1985
30 Series
Row-Crop tractor
Series map:
3488
3688
124.4hp*
125.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1440

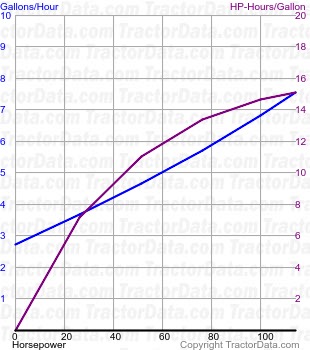

3688 fuel use from test 1440
Nebraska Tractor Test 1440
Diesel 16-speed 2WD
May 26, 1982 - June 7, 1962
Link: Nebraska Tractor Test 1440 file
PTO performance
Power at rated engine speed113.72 hp
84.8 kW
Fuel use7.5 gal/hour
28.4 l/hour
Power at rated PTO speed112.48 hp
83.9 kW
Fuel use7.1 gal/hour
26.9 l/hour
Drawbar performance
Max power99.21 hp
74.0 kW
Fuel use7.5 gal/hour
28.4 l/hour
Max pull12250 lbs
5556 kg
