| | 1978 - 1981 |
| 30 2+2 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
3388
3588
3788
145.1hp*
167.1hp*
189.5hp*
*Estimated engine power for comparison only.
| Transmission |
| Transmission | Torque Amplifier
|
| Type | two-range power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | 356mm dry disc
|
| Oil capacity | 94.5 qts
89.4 L
|
| Left lever selects high, low, or reverse range. Right lever selects gear. On-the-move power shift without the clutch between gear pairs 1/2, 3/4, 5/6, and 7/8. Synchronized shift (with the clutch) from 2-to-3, 4-to-5, and 6-to-7. |

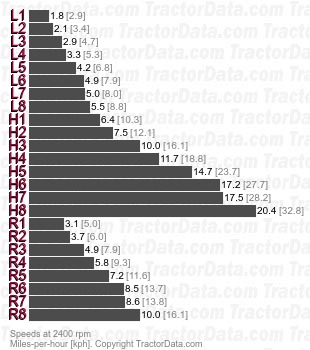

| Speeds |
| With 18.4-34 tires. |
|
