Tractors > International Harvester > 3588

International Harvester 3588 Tests



International Harvester 3588 tractor photo
1978 - 1981
30 2+2 Series
Four-wheel Drive (4WD) tractor
Series map:
3388
3588
3788
145.1hp*
167.1hp*
189.5hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1320

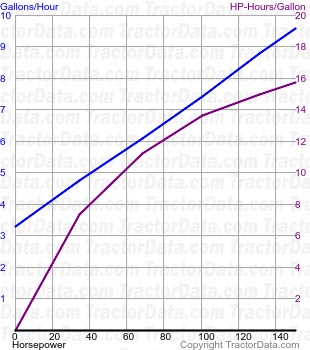

3588 fuel use from test 1320
Nebraska Tractor Test 1320
Diesel 16-speed 4WD
August 22 - 29, 1979
Link: Nebraska Tractor Test 1320 file
PTO performance
Power at rated engine speed150.41 hp
112.2 kW
Fuel use9.6 gal/hour
36.3 l/hour
Power at rated PTO speed152.07 hp
113.4 kW
Fuel use9.0 gal/hour
34.1 l/hour
Drawbar performance
Max power126.15 hp
94.1 kW
Fuel use9.6 gal/hour
36.3 l/hour
Gear 4LoDD used for power test.
Max pull17589 lbs
7978 kg
Gear 1LoDD used for pull test.
