| | 1978 - 1981 |
| 30 2+2 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
3388
3588
145.1hp*
167.1hp*
*Estimated engine power for comparison only.
| Transmission |
| Transmission | Torque Amplifier
|
| Type | two-range power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | 356mm dry disc
|
| Four gears (1-4) in two ranges (low-high) with two-range power shift between direct-drive and Torque Amplifier. |

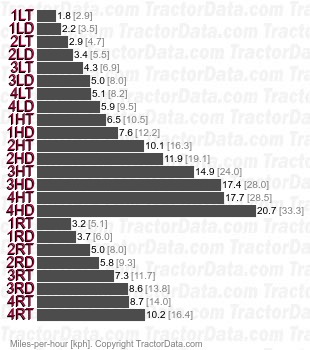

| Speeds |
|
