| | 1981 - 1985 |
| 30 Series | | Row-Crop tractor |
|
Series map:
3088
3288
3488
88.9hp*
100.0hp*
124.4hp*
*Estimated engine power for comparison only.
| Transmission |
| Type | partial power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | cerametallic disc
|
| Oil capacity | 90 qts
85.2 L
|
| Left lever selects gear, right lever selects high, low, or reverse range. Tractor may be shifted on the move without the clutch between gear pairs (1-2, 3-4, etc). Synchronized shifting, using the clutch, between gear pairs (2 to 3, 4 to 5, etc). The transmission is four-gear with the powershift provided by an electric solenoid actuated Torque Amplifier. |

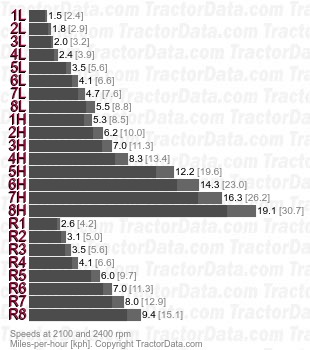

| Speeds |
| With 18.4-34R1 rear tires. |
|
| Shift Pattern |
 |
