International Harvester 3288 Engine


International Harvester 3288 tractor photo
1981 - 1985
30 Series
Row-Crop tractor
Series map:
3088
3288
3488
88.9hp*
100.0hp*
124.4hp*
*Estimated engine power for comparison only.
Engine Detail
International Harvester D358
diesel
6-cylinder
liquid-cooled
Displacement358 ci
5.9 L
Bore/Stroke3.875x5.060 inches
98 x 129 mm
Air cleanerdual dry element
Compression14.8:1
Rated RPM2400
Idle RPM900-2400
Starter volts12
Coolant capacity24 qts
22.7 L
Engine Oil

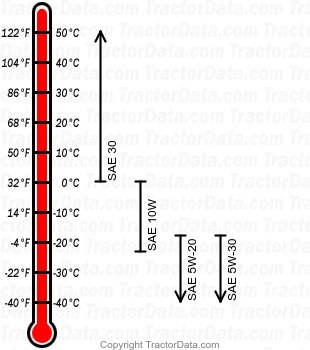

3288 diesel engine oil chart
Oil capacity11 qts
10.4 L
