| | 1981 - 1985 |
| 30 Series | | Row-Crop tractor |
|
Series map:
3088
3288
88.9hp*
100.0hp*
*Estimated engine power for comparison only.
| Engine Detail |
| International Harvester D358 |
| diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 358 ci
5.9 L
|
| Bore/Stroke | 3.875x5.0625 inches
98 x 129 mm
|
| Air cleaner | dual dry element
|
| Compression | 16.4:1
|
| Rated RPM | 2400
|
| Idle RPM | 900-2400
|
| Starter volts | 12
|
| Coolant capacity | 24 qts
22.7 L
|

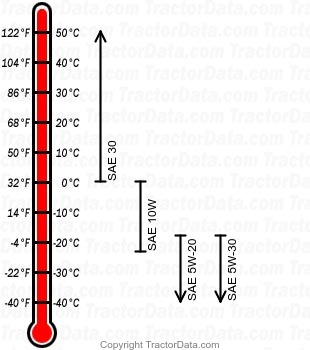

| Engine Oil |
|
| Oil capacity | 11 qts
10.4 L
|
