International Harvester 1586 Transmission


International Harvester 1586 tractor photo
1976 - 1981
86 Series
Row-Crop tractor
Series map:
1486
1586
162.2hp*
179.5hp*
*Estimated engine power for comparison only.
Transmission
TransmissionTorque Amplifier
Typepartial power shift
Gears12 forward and 6 reverse
Oil capacity108 qts
102.2 L
The transmission features three ranges (low, high, and reverse) with three gears (1-3) in each range. The Torque Amplifier (TA) provides an additional high/low selection for each speed. The range and gear can be shifted only when the tractor is stopped. The TA can be shifted while the tractor is in motion.

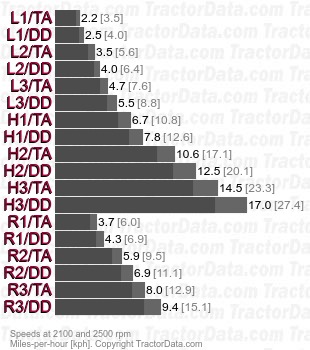

Speeds
20.8-38 rear tires.
1586 Torque Amplifier partial power shift speeds
