Tractors > International Harvester > 1466

International Harvester 1466 Tests



International Harvester 1466 tractor photo
1971 - 1976
66 Series
Row-Crop tractor
Series map:
1066
1466
1468
140.0hp*
147.8hp*
147.8hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1080: 2400rpm diesel TA 2WD
NTTL 1125: 2600rpm diesel TA 2WD
Nebraska Tractor Test 1080

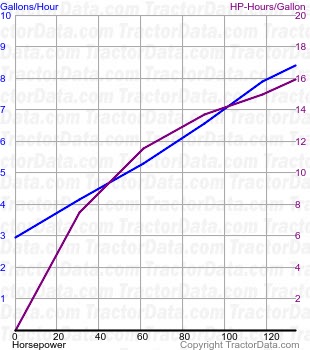

1466 fuel use from test 1080
Nebraska Tractor Test 1080
2400rpm diesel TA 2WD
October 2 - 19, 1971
Link: Nebraska Tractor Test 1080 file
PTO performance
Power at rated engine speed133.4 hp
99.5 kW
Fuel use8.4 gal/hour
31.8 l/hour
Power at rated PTO speed125.17 hp
93.3 kW
Fuel use7.4 gal/hour
28.0 l/hour
Drawbar performance
Max power115.74 hp
86.3 kW
Fuel use8.3 gal/hour
31.4 l/hour
Gear 1-Hi-TA used for power test.
Max pull13,165 lbs
5971 kg
Gear 3-Lo-TA used for pull test.
Nebraska Tractor Test 1125

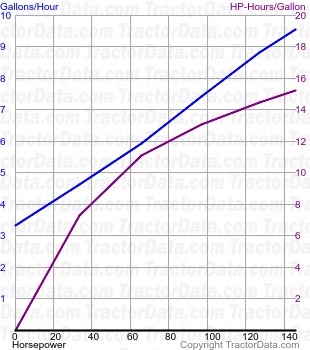

1466 fuel use from test 1125
Nebraska Tractor Test 1125
2600rpm diesel TA 2WD
April 17 - 27, 1973
Link: Nebraska Tractor Test 1125 file
PTO performance
Power at rated engine speed145.77 hp
108.7 kW
Fuel use9.6 gal/hour
36.3 l/hour
Power at rated PTO speed145.85 hp
108.8 kW
Fuel use8.6 gal/hour
32.6 l/hour
Drawbar performance
Max power123.20 hp
91.9 kW
Fuel use9.5 gal/hour
36.0 l/hour
Gear 1-Hi-TA used for power test.
Max pull13,673 lbs
6202 kg
Gear 3-Lo-TA used for pull test.
