International Harvester 1206 Transmission


International Harvester 1206 tractor photo
1965 - 1967
Series map:
806
1206
105.5hp*
125.1hp*
*Estimated engine power for comparison only.
Transmission options
8-speed unsynchronized
16-speed partial power shift
Transmission
Typeunsynchronized
Gears8 forward and 4 reverse
Shift Pattern
International Harvester 1206 transmission controls
Transmission
TransmissionTorque Amplifier
Typepartial power shift
Gears16 forward and 8 reverse
The Torque Amplifier (TA) provides a clutchless power shift between Direct Drive (DD) and the lower TA gearing.
Speeds

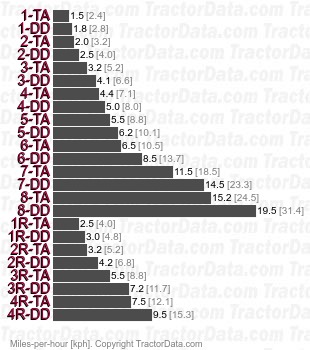

1206 Torque Amplifier partial power shift speeds
