| | 1976 - 1981 |
| 86 Series | | Row-Crop tractor |
|
Series map:
886
986
Hydro 186
95.7hp*
117.4hp*
116.7hp*
*Estimated engine power for comparison only.
| Transmission |
| Transmission | Torque Amplifier
|
| Gears | 16 forward and 8 reverse
|
| Oil capacity | 90 qts
85.2 L
|
| Oil type |
|
| The transmission features three ranges (low, high, and reverse) with four gears (1-4) in each range. The Torque Amplifier (TA) provides an additional high/low selection for each speed. The range and gear can be shifted only when the tractor is stopped. The TA can be shifted while the tractor is in motion. |

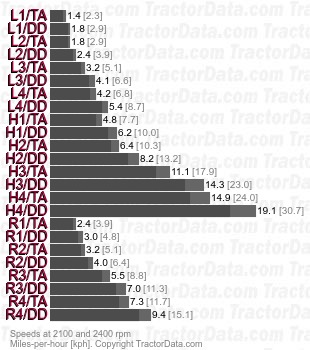

| Speeds |
| 18.4-34 rear tires. |
|
