Tractors > International Harvester > 886

International Harvester 886 Tests



International Harvester 886 tractor photo
1976 - 1981
86 Series
Row-Crop tractor
Series map:
786
886
986
89.1hp*
95.7hp*
117.4hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1254: 360 diesel Torque Amplifier 2WD
NTTL 1338: 358 diesel Torque Amplifier 2WD
NTTL 1339: 358 diesel Torque Amplifier 2WD
Nebraska Tractor Test 1254

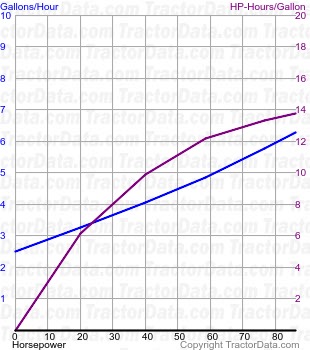

886 fuel use from test 1254
Nebraska Tractor Test 1254
360 diesel Torque Amplifier 2WD
September 15 - 23, 1977
Link: Nebraska Tractor Test 1254 file
PTO performance
Power at rated engine speed86.14 hp
64.2 kW
Fuel use6.3 gal/hour
23.8 l/hour
Power at rated PTO speed83.16 hp
62.0 kW
Fuel use5.8 gal/hour
22.0 l/hour
Drawbar performance
Max power73.07 hp
54.5 kW
Fuel use6.2 gal/hour
23.5 l/hour
Gear 4-Low-Direct used for power test.
Max pull10,485 lbs
4755 kg
Gear 2-Low-Direct used for pull test.
Nebraska Tractor Test 1338

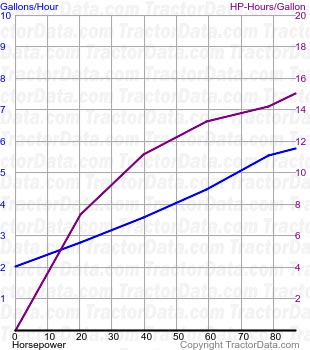

886 fuel use from test 1338
Nebraska Tractor Test 1338
358 diesel Torque Amplifier 2WD
March 26 - April 10, 1980
Link: Nebraska Tractor Test 1338 file
PTO performance
Power at rated engine speed86.57 hp
64.6 kW
Fuel use5.8 gal/hour
22.0 l/hour
Power at rated PTO speed83.91 hp
62.6 kW
Fuel use5.2 gal/hour
19.7 l/hour
Drawbar performance
Max power75.08 hp
56.0 kW
Fuel use5.8 gal/hour
22.0 l/hour
Gear 1-Hi-TA used for power test.
Max pull10,807 lbs
4902 kg
Gear 2-Low-Direct used for pull test.
Nebraska Tractor Test 1339

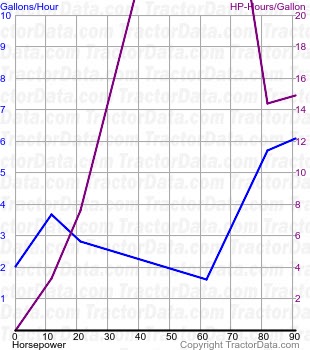

886 fuel use from test 1339
Nebraska Tractor Test 1339
358 diesel Torque Amplifier 2WD
April 10 - 18, 1980
Link: Nebraska Tractor Test 1339 file
PTO performance
Power at rated engine speed90.56 hp
67.5 kW
Fuel use6.1 gal/hour
23.1 l/hour
Power at rated PTO speed88.23 hp
65.8 kW
Fuel use5.6 gal/hour
21.2 l/hour
Drawbar performance
Max power77.78 hp
58.0 kW
Fuel use6.1 gal/hour
23.1 l/hour
Gear 1-Hi-TA used for power test.
Max pull10,930 lbs
4957 kg
Gear 2-Low-Direct used for pull test.
