International Harvester 884
| | 1979 - 1984 |
| 84 Series | | Utility tractor |
|
Series map:
784
884
74.9hp*
81.0hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | International Harvester
|
| Utility tractor |
| Original price was $25,600 in 1984 |
| International Harvester 884 Power |
| Drawbar (claimed) | 65.4 hp
48.8 kW
|
| PTO (claimed) | 72.9 hp
54.4 kW
|
| Drawbar (tested) | 63.97 hp
47.7 kW
|
| PTO (tested) | 72.91 hp
54.4 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Power steering |
| Independent hydraulic wet disc brakes |
| Two-post ROPS. Cab optional. |
| Capacity |
| Fuel | 20 gal
75.7 L
|
| Hydraulic system | 9 gal
34.1 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 9 gal
34.1 L
|
| Valves | 1 or 2
|
| Total flow | 15.4 gpm
58.3 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift | 3600 lbs
1632 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear PTO Type | 540/1000
|
| Dimensions & Tires |
| Utility Wheelbase | 88 inches
223 cm
|
| Row-crop Wheelbase | 84.5 inches
214 cm
|
| 4WD Wheelbase | 85.2 inches
216 cm
|
| Low-profile Wheelbase | 83.75 inches
212 cm
|
| Weight | 5905 to 7223 pounds
|
| Front tire | 7.50-18
|
| Rear tire | 18.4-30
|
 Full dimensions and tires ... |

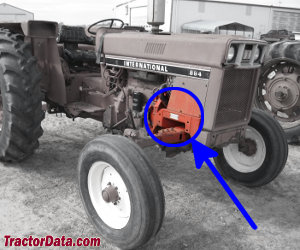

| 884 Serial Number Location |
 |
| Serial number place on the right side of IH 884 above the front axle. |
| Electrical |
| Ground | negative
|
| Charging amps | 45
|
| Battery volts | 12
|

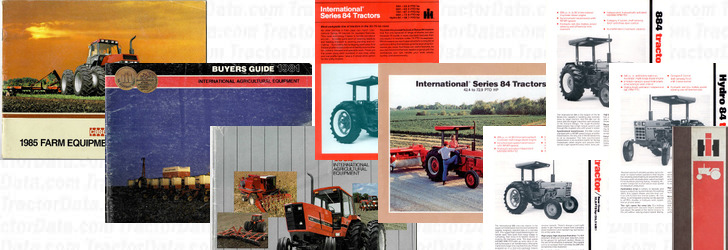

| References |
 |
| 1985 Farm Equipment Buyer's Guide published by CaseIH |
| Buyer's Guide 1981 published by International Harvester |
| Buyer's Guide 1982 published by International Harvester |
| International Series 84 tractors published in 1982, by International Harvester |
| International Series 84 Tractors published in 1983, by International Harvester |
| 884 tractor / Row-Crop published by International Harvester |
| 884 tractor / Utility published by International Harvester |
| Hydro 84 tractor / Row-Crop published by International Harvester |
| Agricultural Equipment Reference Catalog published in 1980, by International Harvester |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on February 10, 2019 |
