International Harvester 856 Transmission


International Harvester 856 tractor photo
1967 - 1971
Series map:
756
856
1256
101.0hp
111.6hp*
125.6hp*
*Estimated engine power for comparison only.
Transmission options
8-speed
16-speed two-speed power shift
Transmission
TransmissionInternational Harvester sliding gear
Gears8 forward and 4 reverse
Transmission
TransmissionTorque Amplifier
Typetwo-speed power shift
Gears16 forward and 8 reverse
Four gears with high and low ranges. Torque Amplifier (TA) provides a power shift between direct-drive (DD) and lower TA speed in each gear.
Speeds
With 18.4-38 rear tires.

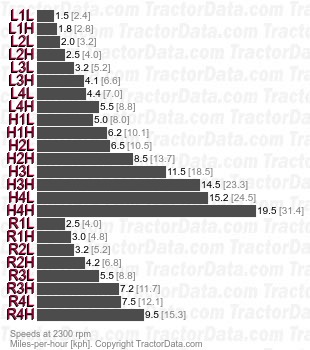

856 Torque Amplifier two-speed power shift speeds
Shift Pattern
International Harvester 856 transmission controls
