International Harvester 856 Tests


International Harvester 856 tractor photo
1967 - 1971
Series map:
756
856
1256
101.0hp
111.6hp*
125.6hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 970

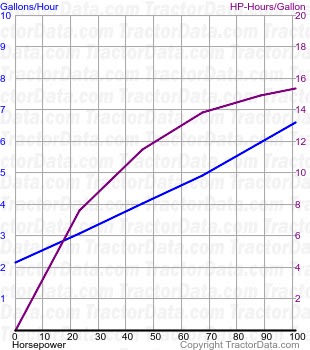

856 fuel use from test 970
Nebraska Tractor Test 970
Diesel 16-speed 2WD
April 15 - 30, 1968
Link: Nebraska Tractor Test 970 file
PTO performance
Power at rated engine speed100.49 hp
74.9 kW
Fuel use6.6 gal/hour
25.0 l/hour
Power at rated PTO speed94.29 hp
70.3 kW
Fuel use6.0 gal/hour
22.7 l/hour
Drawbar performance
Max power87.2 hp
65.0 kW
Fuel use6.6 gal/hour
25.0 l/hour
Gear 1-Hi-TA used for power test.
Max pull9,417 lbs
4271 kg
Gear 3-Lo-TA used for pull test.
