| | 1963 - 1967 |
| Standard-tread tractor |
|
Series map:
706
806
1206
80.5hp*
105.5hp*
125.1hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed unsynchronized |
| 16-speed partial power shift |
| Transmission |
| Type | unsynchronized
|
| Gears | 8 forward and 4 reverse
|
| Four gears (1-4) in low, high, and reverse ranges. |

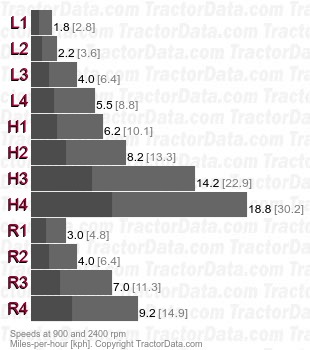

| Speeds |
| With 16.9-38 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | Torque Amplifier
|
| Type | partial power shift
|
| Gears | 16 forward and 8 reverse
|
| As two-range Torque Amplifer (TA) to the basic transmission. Pulling back on the left-hand TA lever provides a clutchless shift to a lower speed for each gear. Pushing the lever forward return to direct-drive mode. |
| Speeds |
| With 16.9-38 rear tires. |
|
