| | 1980 - 1981 |
| 86 Series | | Row-Crop tractor |
|
Series map:
786
886
89.1hp*
95.7hp*
*Estimated engine power for comparison only.
| Transmission |
| Transmission | Torque Amplifier
|
| Gears | 16 forward and 8 reverse
|
| Oil capacity | 90 qts
85.2 L
|
| Oil type |
|
| The tractor must be stopped to shift the transmission (except the TA). The right-most console lever selects range (high, low, or reverse) and the left lever selects one of four gears. The Torque Amplifier (TA) is on the left side of the instrument panel and may be shifted without the clutch. Pulling back engages the TA, reducing the ground speed. Pushing the lever forward puts the transmission in direct drive (DD) mode. |

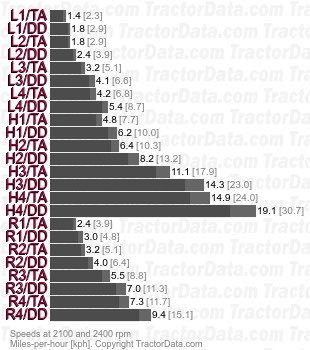

| Speeds |
| 18.4-34 rear tires. |
|
