International Harvester 686 Tests


International Harvester 686 tractor photo
1976 - 1980
Series map:
686
73.7hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1151: 312 diesel Torque Amplifier 2WD
NTTL 1152: gasoline Torque Amplifier 2WD
NTTL 1336: 310 diesel Torque Amplifier 2WD
Nebraska Tractor Test 1151

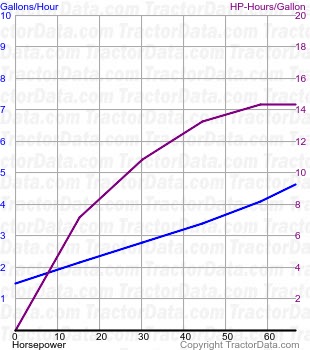

686 fuel use from test 1151
Nebraska Tractor Test 1151
312 diesel Torque Amplifier 2WD
November 3 - 14, 1973
Link: Nebraska Tractor Test 1151 file
PTO performance
Power at rated engine speed66.29 hp
49.4 kW
Fuel use4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power58.01 hp
43.3 kW
Fuel use4.6 gal/hour
17.4 l/hour
Gear 3-Direct used for power test.
Max pull8,012 lbs
3634 kg
Gear 2-TA used for pull test.
Nebraska Tractor Test 1152

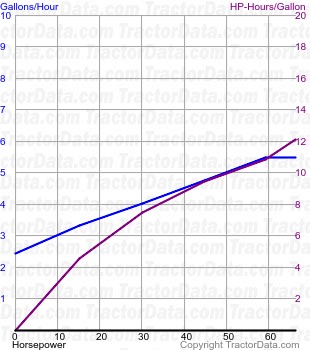

686 fuel use from test 1152
Nebraska Tractor Test 1152
Gasoline Torque Amplifier 2WD
November 5 - December 3, 1973
Link: Nebraska Tractor Test 1152 file
PTO performance
Power at rated engine speed66.30 hp
49.4 kW
Fuel use12.0 gal/hour
45.4 l/hour
Drawbar performance
Max power57.29 hp
42.7 kW
Fuel use5.7 gal/hour
21.6 l/hour
Gear 3-Direct used for power test.
Max pull7,981 lbs
3620 kg
Gear 2-TA used for pull test.
Nebraska Tractor Test 1336

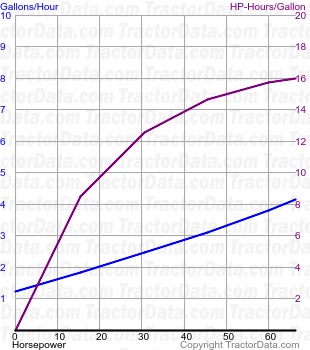

686 fuel use from test 1336
Nebraska Tractor Test 1336
310 diesel Torque Amplifier 2WD
March 26 - April 16, 1980
Link: Nebraska Tractor Test 1336 file
PTO performance
Power at rated engine speed66.36 hp
49.5 kW
Fuel use4.1 gal/hour
15.5 l/hour
Drawbar performance
Max power57.71 hp
43.0 kW
Fuel use4.1 gal/hour
15.5 l/hour
Gear 3-Direct used for power test.
Max pull8,013 lbs
3634 kg
Gear 1-Direct used for pull test.
