International Harvester 350 Engine


International Harvester 350 tractor photo
1956 - 1958
Utility tractor
Series map:
330
350
39.1hp*
49.9hp*
*Estimated engine power for comparison only.
Engine options
Continental 3.2L 4-cyl diesel
International Harvester 2.9L 4-cyl gasoline
International Harvester 2.9L 4-cyl LP gas
Engine Detail
Continental D193
diesel
4-cylinder
liquid-cooled
Displacement193 ci
3.2 L
Bore/Stroke3.75x4.375 inches
95 x 111 mm
Air cleaneroil bath
Compression16.87:1
Rated RPM2000
Starter volts12
Coolant capacity16 qts
15.1 L
Engine Detail
International Harvester C175
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement175 ci
2.9 L
Bore/Stroke3.625x4.25 inches
92 x 108 mm
Compression7.0:1
Rated RPM2000
Starter volts6
Coolant capacity18 qts
17.0 L
International Harvester 350 Engine

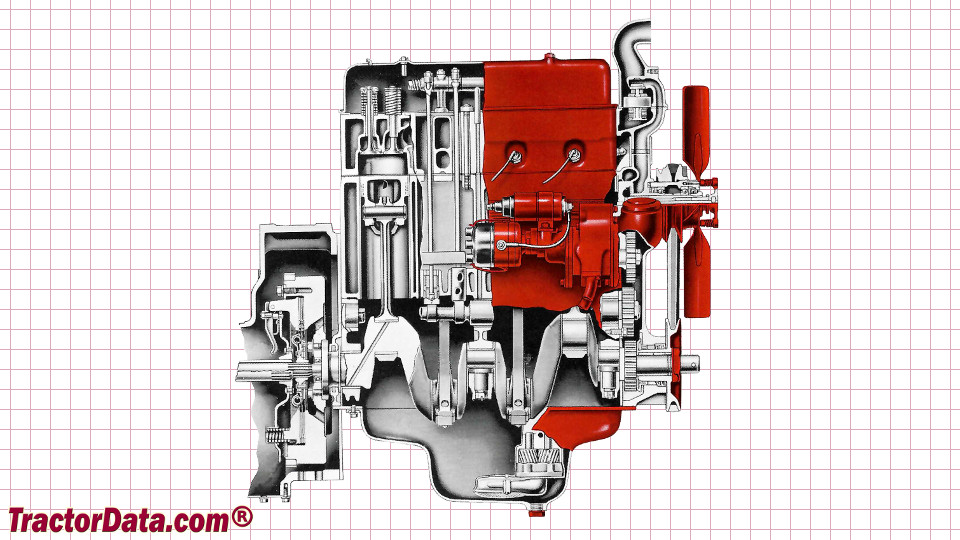

International Harvester 350 engine image
Engine Detail
International Harvester C175
LP gas
4-cylinder
liquid-cooled
Displacement175 ci
2.9 L
Bore/Stroke3.625x4.25 inches
92 x 108 mm
Compression9.0:1
Rated RPM2000
Starter volts12
Coolant capacity16 qts
15.1 L
