International Harvester 340 Engine


International Harvester 340 tractor photo
1958 - 1963
Utility tractor
Series map:
240
340
38.5hp
47.0hp
Engine options
International Harvester 2.2L 4-cyl gasoline
International Harvester 2.7L 4-cyl diesel
Engine Detail
International Harvester C-135
gasoline
4-cylinder
liquid-cooled inline
Displacement135 ci
2.2 L
Bore/Stroke3.25x4.0625 inches
83 x 103 mm
Power47 hp
35.0 kW
Air cleaneroil bath
Compression7.6:1
Rated RPM2000
Torque128 lb-ft
173.6 Nm
Torque RPM1200
Starter volts6
Oil capacity5 qts
4.7 L
Coolant capacity15 qts
14.2 L
International Harvester 340 Engine

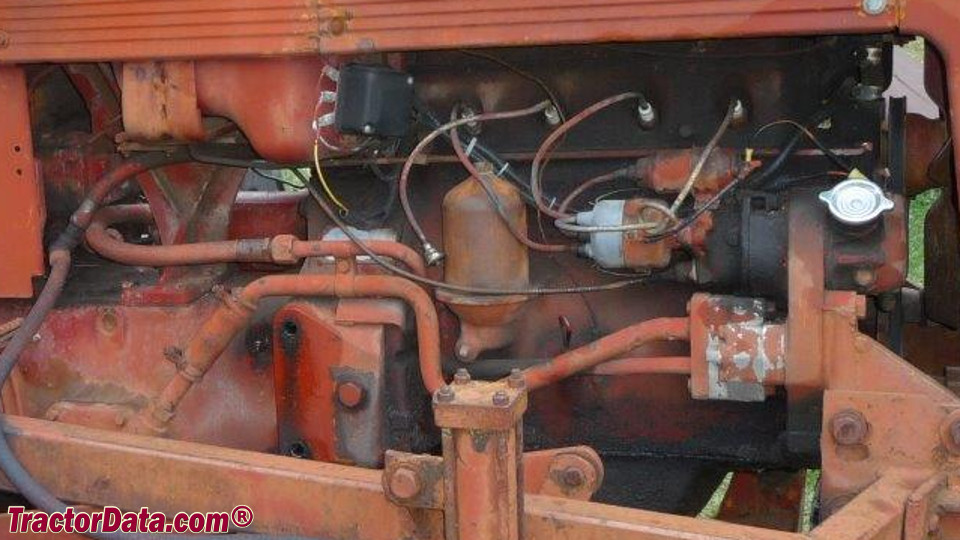

International Harvester 340 engine image
Image courtesy of Ken Jondahl
Engine Detail
International Harvester D-166
diesel
4-cylinder
liquid-cooled
The diesel engine was available as an option on the 340 starting in 1960.
Displacement166 ci
2.7 L
Bore/Stroke3.6875x3.875 inches
94 x 98 mm
Power47 hp
35.0 kW
Air cleaneroil bath
Compression19.2:1
Rated RPM2000
Torque129 lb-ft
174.9 Nm
Torque RPM1400
Starter volts12
Oil capacity7 qts
6.6 L
Coolant capacity18.6 qts
17.6 L
International Harvester 340 Engine

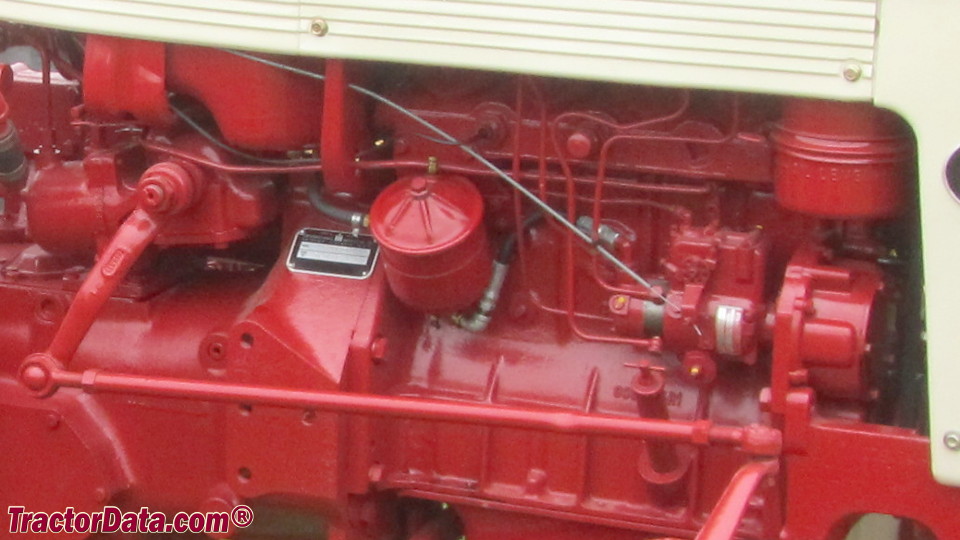

International Harvester 340 engine image
