Tractors > International Harvester > Hydro 86

International Harvester Hydro 86 Tests



International Harvester Hydro 86 tractor photo
1976 - 1980
86 Series
Row-Crop tractor
Series map:
Hydro 86
77.2hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 1154: gasoline hydrostatic 2WD
NTTL 1155: 312 diesel hydrostatic 2WD
NTTL 1337: 310 diesel hydrostatic 2WD
Nebraska Tractor Test 1154

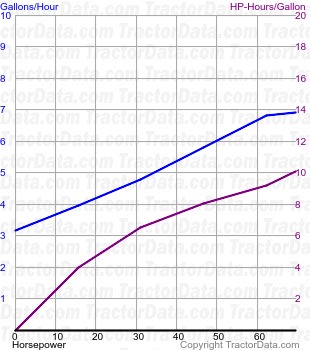

Hydro 86 fuel use from test 1154
Nebraska Tractor Test 1154
Gasoline hydrostatic 2WD
November 14 - December 3, 1973
Link: Nebraska Tractor Test 1154 file
PTO performance
Power at rated engine speed69.61 hp
51.9 kW
Fuel use6.9 gal/hour
26.1 l/hour
Power at rated PTO speed64.10 hp
47.8 kW
Fuel use5.8 gal/hour
22.0 l/hour
Drawbar performance
Max power53.86 hp
40.2 kW
Fuel use7.7 gal/hour
29.1 l/hour
Max pull8,427 lbs
3822 kg
Nebraska Tractor Test 1155

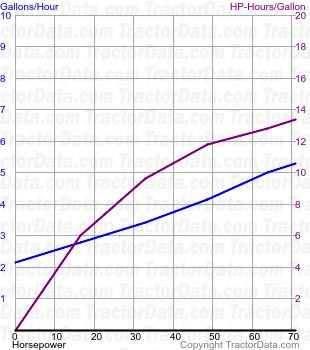

Hydro 86 fuel use from test 1155
Nebraska Tractor Test 1155
312 diesel hydrostatic 2WD
November 14 - December 3, 1973
Link: Nebraska Tractor Test 1155 file
PTO performance
Power at rated engine speed69.51 hp
51.8 kW
Fuel use5.6 gal/hour
21.2 l/hour
Power at rated PTO speed65.41 hp
48.8 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power53.10 hp
39.6 kW
Fuel use5.6 gal/hour
21.2 l/hour
Max pull8,310 lbs
3769 kg
Nebraska Tractor Test 1337

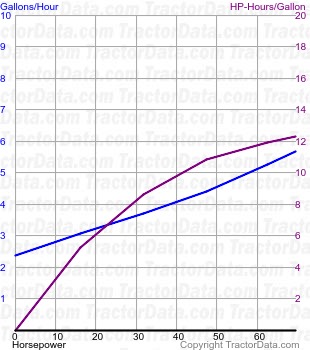

Hydro 86 fuel use from test 1337
Nebraska Tractor Test 1337
310 diesel hydrostatic 2WD
March 27 - September 17, 1980
Link: Nebraska Tractor Test 1337 file
PTO performance
Power at rated engine speed70.89 hp
52.9 kW
Fuel use5.3 gal/hour
20.1 l/hour
Power at rated PTO speed66.64 hp
49.7 kW
Fuel use4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power52.49 hp
39.1 kW
Fuel use5.3 gal/hour
20.1 l/hour
Pull at 6.5 KPH
Max pull8815 lbs
3998 kg
Pull at 3.3 KPH
