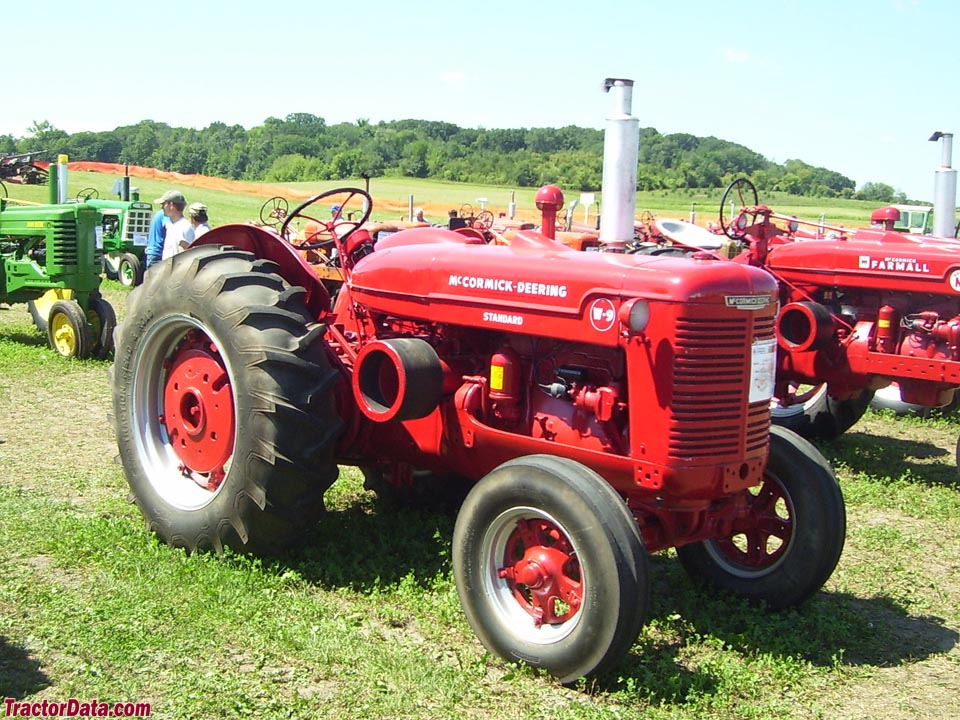

McCormick-Deering W-9
| | 1940 - 1953 |
| Standard-tread tractor |
|
| Production |
| Manufacturer | McCormick-Deering (a part of International Harvester)
|
| Standard-tread tractor |
| Factories | Milwaukee, Wisconsin, USA
|
| | Melrose Park, Illinois, USA
|
| Total built | 67,418
|
| Original price | $3,300
|
| The 9-series tractors consisted of six models, the W-9, WD-9, WR-9, WDR-9, I-9, and ID-9. The D models are diesel. The R is a rice model, with larger fenders and a hand-clutch to allow driving while standing. The I models were industrial, with different gear ratios and foot-operated throttle. |
| Variants |
| W-9 | gasoline
|
| WD-9 | diesel
|
| I-9 | industrial
|
| McCormick-Deering W-9 Power |
| Drawbar (claimed) | 35 hp
26.1 kW
|
| Belt (claimed) | 45 hp
33.6 kW
|
| Plows | 4
|
| Drawbar (tested) | 44.15 hp
32.9 kW
|
| Belt (tested) | 49.40 hp
36.8 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual worm-type gear
|
| Differential external contracting band brakes |
| Open operator station. |

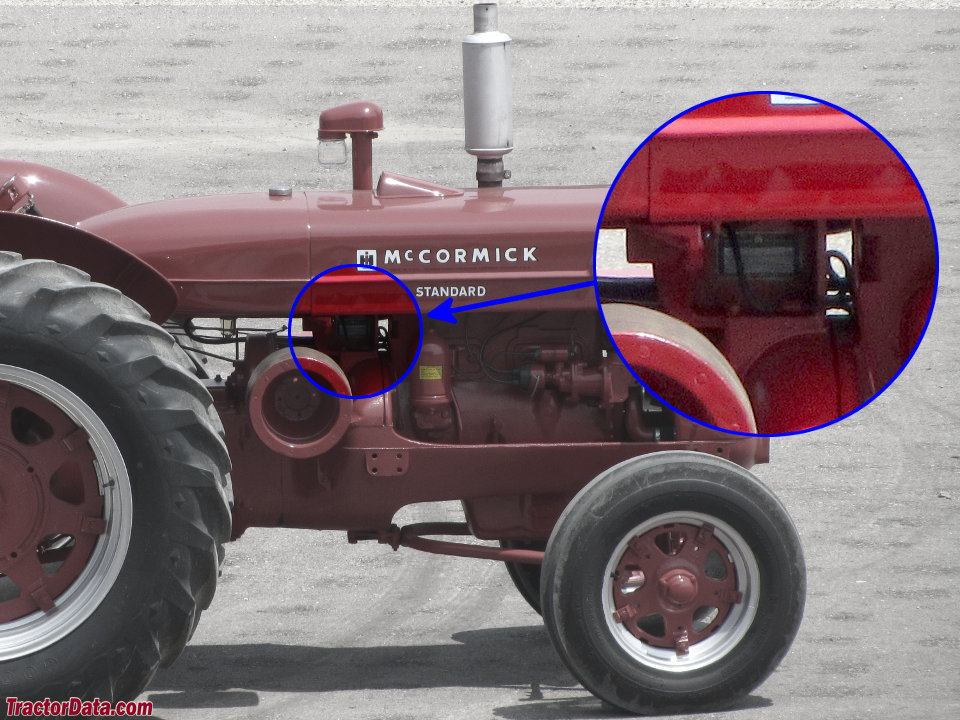

| W-9 Serial Number Location |
 |
| Serial number plate on the right side of the McCormick-Deering W-9, ahead of the belt pulley. |
| W-9 Serial Numbers |
| 1940 | WCB501
|
| 1941 | WCB578
|
| 1942 | WCB3003
|
| 1943 | WCB3651
|
| 1944 | WCB5501
|
| 1945 | WCB11459
|
| 1946 | WCB17294
|
| 1947 | WCB22715
|
| 1948 | WCB29207
|
| 1949 | WCB36159
|
| 1950 | WCB45551
|
| 1951 | WCB51739
|
| 1952 | WCB59407
|
| 1953 | WCB64014
|
| 1954 | WCB67969
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | positive
|
| References |
 |
| Farmall Letter Series Tractors by Lee Klancher |
| McCormick-Deering Standard Tractors published in 1946, by International Harvester |
| McCormick Standard Tractors published by International Harvester |
| General Line Catalog published in 1949, by International Harvester |
