McCormick-Deering W-6 Tests



McCormick-Deering W-6 tractor photo
1940 - 1953
Standard-tread tractor
Series map:
W-4
W-6
27.7hp*
40.8hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 354: distillate 5-speed 2WD
NTTL 355: gasoline 5-speed 2WD
Nebraska Tractor Test 354

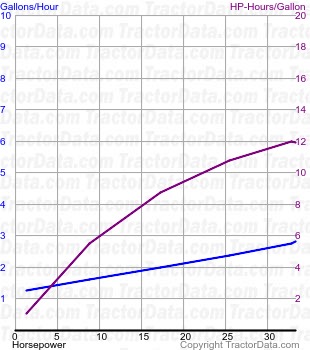

W-6 fuel use from test 354
Nebraska Tractor Test 354
Distillate 5-speed 2WD
September 16 - 23, 1940
Link: Nebraska Tractor Test 354 file
Belt power (max)34.23 hp
25.5 kW
Belt fuel use (max)2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power31.40 hp
23.4 kW
Gear 3 used for power test.
Max pull4,755 lbs
2156 kg
Gear 1 used for pull test.
Nebraska Tractor Test 355

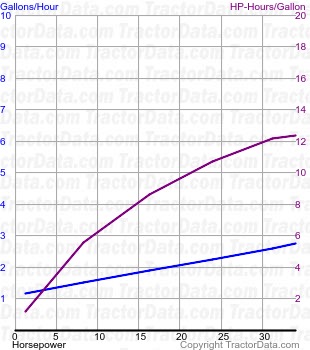

W-6 fuel use from test 355
Nebraska Tractor Test 355
Gasoline 5-speed 2WD
September 16 - 27, 1940
Link: Nebraska Tractor Test 355 file
Belt power (max)36.97 hp
27.6 kW
Belt fuel use (max)3.0 gal/hour
11.4 l/hour
Drawbar performance
Max power32.48 hp
24.2 kW
Gear 2 used for power test.
Max pull4,777 lbs
2166 kg
Gear 1 used for pull test.
