Tractors > Farmall > Super M

Farmall Super M Tests



Farmall Super M tractor photo
1952 - 1954
Row-Crop tractor
Series map:
Super H
Super M
32.2hp*
51.4hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 475: gasoline 5-speed 2WD
NTTL 484: LP gas 5-speed 2WD
Nebraska Tractor Test 475

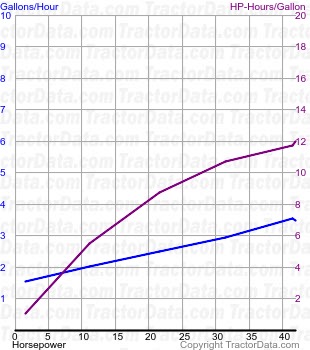

Super M fuel use from test 475
Nebraska Tractor Test 475
Gasoline 5-speed 2WD
June 25 - July 2, 1952
Link: Nebraska Tractor Test 475 file
Belt power (max)46.26 hp
34.5 kW
Belt fuel use (max)3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power41.79 hp
31.2 kW
Gear 3 used for power test.
Max pull5,676 lbs
2574 kg
Gear 1 used for pull test.
Nebraska Tractor Test 484

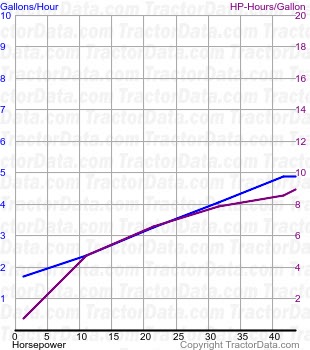

Super M fuel use from test 484
Nebraska Tractor Test 484
LP gas 5-speed 2WD
October 1 - 10, 1952
Link: Nebraska Tractor Test 484 file
Belt power (max)47.07 hp
35.1 kW
Belt fuel use (max)5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power44.23 hp
33.0 kW
Gear 3 used for power test.
Max pull6,115 lbs
2773 kg
Gear 1 used for pull test.
