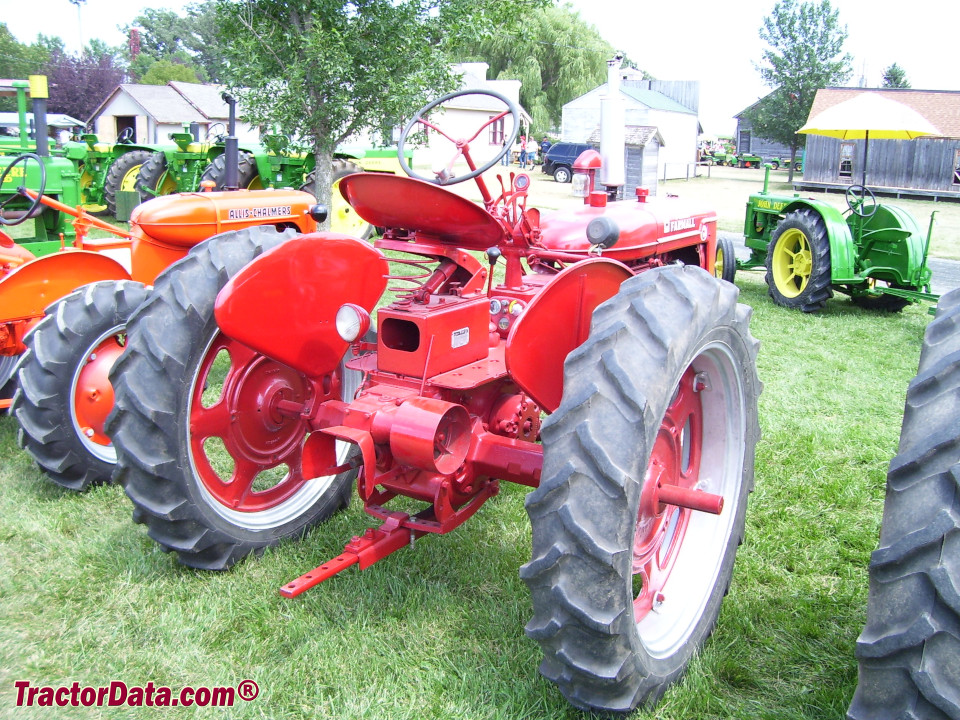

Farmall Super C
Series map:
Super A
Super C
Super H
17.8hp*
26.3hp*
32.2hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Farmall (a part of International Harvester)
|
| Total built | 98,310
|
| Original price was $1,700 in 1954 |
| Farmall Super C Power |
| Drawbar (claimed) | 20.7 hp
15.4 kW
|
| PTO (claimed) | 23.67 hp
17.7 kW
|
| Drawbar (tested) | 20.72 hp
15.5 kW
|
| Belt (tested) | 23.67 hp
17.7 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Differential mechanical disc brakes |
| Open operator station. |
| Hydraulics |
| Type | open center OptOptional
|
| Tractor hitch |
| Type | Fast Hitch *Optional beginning in 1953.
|
| Power Take-off (PTO) |
| Rear PTO Type | 540
|
| Super C Serial Number Location |
 |
| Seat support frame |
| Belt Pulley |
| Diameter | 8.5 inches
21 cm
|
| Width | 6 inches
15 cm
|
| RPM | 1363
|
| Speed | 3,033 ft/min
924.46 meters/min
|
| References |
 |
| Farmall Letter Series Tractors by Lee Klancher |
| Operator's Manual Hydra-Creeper Attachment |
