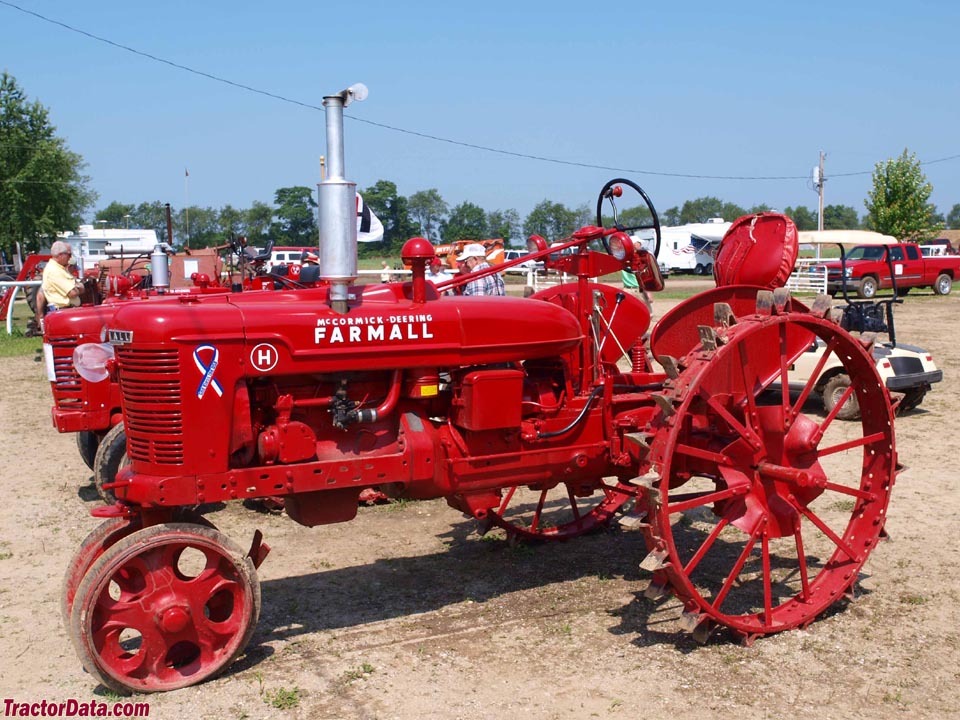

Farmall H
| | 1939 - 1953 |
| Row-Crop tractor |
|
Series map:
C
H
M
23.5hp*
26.7hp*
38.0hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Farmall (a part of International Harvester)
|
| Row-Crop tractor |
| Built in Rock Island, Illinois, USA |
| Total built | 391,227
|
| Original price was $2,000 in 1953 |
| The Farmall H is the row-crop version of the McCormick-Deering W-4. |
| Variants |
| H | row-crop
|
| HV | high-crop
|
| W-4 | standard tread
|
| I-4 | industrial
|
| O-4 | orchard
|
| Farmall H Power |
| Drawbar (claimed) | 19 hp
14.2 kW
|
| Belt (claimed) | 24 hp
17.9 kW
|
| Drawbar (tested) | 24.17 hp
18.0 kW
|
| Belt (tested) | 26.20 hp
19.5 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Mechanical contracting band brakes |
| Open operator station. |
| Capacity |
| Fuel | 17.5 gal
66.2 L
|
| Aux. fuel | 0.875 gal
3.3 L
|
| Hydraulic system | 1 gal
3.8 L
|
| Hydraulics |
| Capacity | 1 gal
3.8 L
|
| Tractor hitch |
| Type | Lift-All *Pneumatic implement lift system.
|
| Power Take-off (PTO) |
| Rear PTO Type | 540 *The 1-3/8 shaft was adopted in 1942. Prior to that, a 1-1/8 inch shaft was used.
|

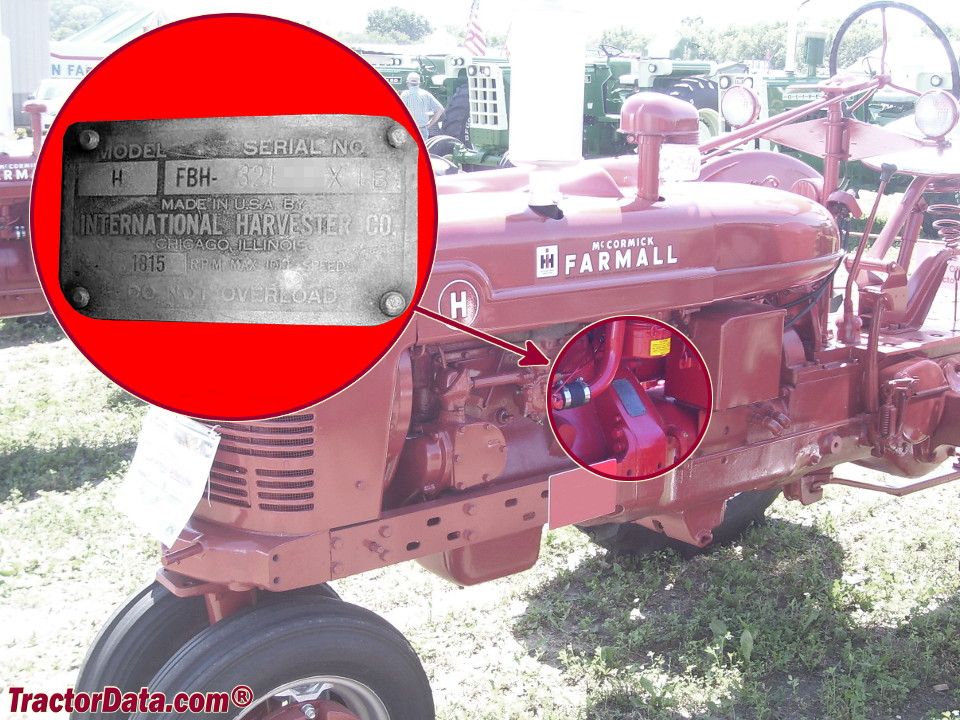

| H Serial Number Location |
 |
| Transmission housing on left. |
| H Serial Numbers |
| 1939 | 501
|
| 1940 | 10653
|
| 1941 | 52387
|
| 1942 | 93237
|
| 1943 | 122091
|
| 1944 | 150251
|
| 1945 | 186123
|
| 1946 | 214820
|
| 1947 | 241143
|
| 1948 | 268991
|
| 1949 | 300876
|
| 1950 | 327975
|
| 1951 | 351923
|
| 1952 | 375861
|
| 1953 | 390500
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | positive
|
| Charging system | generator
|
| Battery volts | 6
|
| References |
 |
| Farmall Letter Series Tractors by Lee Klancher |
| No. 30 Power Loader published by International Harvester |
| Farm Loaders published in 1962, by International Harvester |
| Operator's Manual Farmall H (5358) published in 1940 |
| General Line Catalog published in 1949, by International Harvester |
