| | 1977 - 1979 |
| Row-Crop tractor |
|
Series map:
8700
9700
127.0hp
146.0hp

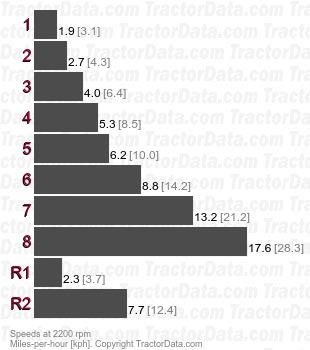

| Transmission options |
| 8-speed gear |
| 16-speed two-speed power shift |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Four gears, plus reverse, in two ranges. |
| Speeds |
| With 15-38 rear tires. |
|

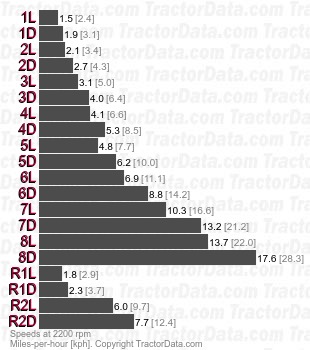

| Transmission |
| Transmission | Dual Power
|
| Type | two-speed power shift
|
| Gears | 16 forward and 4 reverse
|
| Clutch | dry disc
|
| Speeds |
| With 15-38 rear tires. |
|
