Series map:
8600
9600
123.0hp*
150.5hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed |
| 16-speed partial power shift |
| Transmission |
| Gears | 8 forward and 2 reverse
|
| Oil capacity | 64 qts
60.6 L
|
| Four gears with two ranges. The up-shift from 3-to-4 and 7-to-8 synchronized. Tractor must be stopped, and clutch used, for all other shifts. |

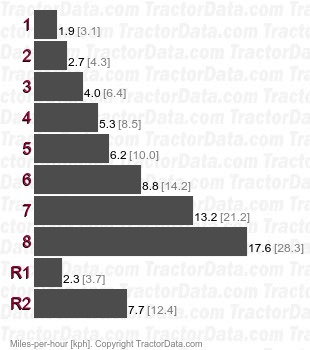

| Speeds |
|
| Transmission |
| Transmission | Dual Power
|
| Type | partial power shift
|
| Gears | 16 forward and 4 reverse
|
| Oil capacity | 69 qts
65.3 L
|
| Dual Power adds a power shift to the basic eight-speed transmission. Two foot buttons control the shift, the left button engages direct drive (normal) mode while the right "power drive" button provides the lower range. The power drive button must be down for stationary PTO work. |

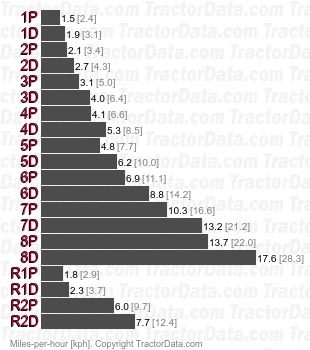

| Speeds |
|
