| | 1968 - 1972 |
| Row-Crop tractor |
|
Series map:
8000
9000
115.5hp
145.0hp
| Transmission options |
| 8-speed gear |
| 16-speed two-speed power shift |
| Transmission |
| Transmission | Dual Range
|
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Oil capacity | 12 qts
11.4 L
|
| Oil type |
|
| Speeds |
|
| Transmission |
| Transmission | Dual Power
|
| Type | two-speed power shift
|
| Gears | 16 forward and 4 reverse
|
| Oil capacity | 12 qts
11.4 L
|

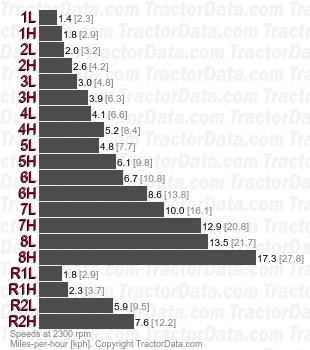

| The optional Dual Power transmission became available in 1969. |

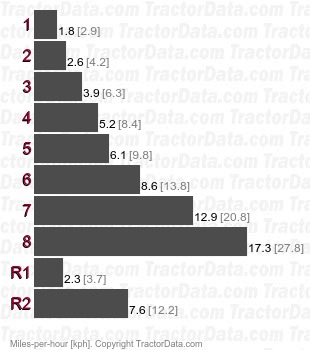

| Speeds |
|
