Ford 7700 Tests


Ford 7700 tractor photo
1975 - 1981
Row-Crop tractor
Series map:
6700
7700
75.5hp
96.7hp
Nebraska Tractor Test 1242

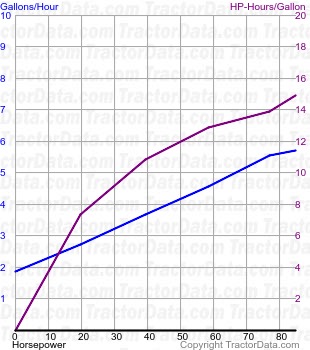

7700 fuel use from test 1242
Nebraska Tractor Test 1242
Diesel 16-speed 2WD
May 9 - 18, 1977
Link: Nebraska Tractor Test 1242 file
PTO performance
Power at rated engine speed84.38 hp
62.9 kW
Fuel use5.7 gal/hour
21.6 l/hour
Power at rated PTO speed84.29 hp
62.9 kW
Fuel use5.5 gal/hour
20.8 l/hour
Drawbar performance
Max power67.62 hp
50.4 kW
Fuel use5.7 gal/hour
21.6 l/hour
Max pull7,688 lbs
3487 kg
