Ford 7600 Tests


Ford 7600 tractor photo
1975 - 1981
Utility tractor
Series map:
6600
7600
75.5hp
96.7hp
Nebraska Tractor Test 1225

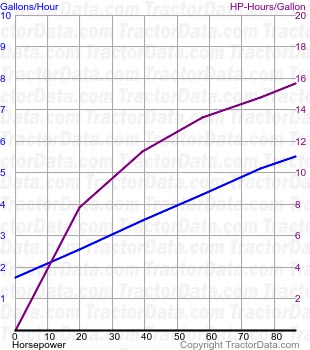

7600 fuel use from test 1225
Nebraska Tractor Test 1225
Diesel 16-speed 2WD
September 22 - October 8, 1976
Link: Nebraska Tractor Test 1225 file
PTO performance
Power at rated engine speed84.79 hp
63.2 kW
Fuel use5.4 gal/hour
20.4 l/hour
Power at rated PTO speed85.16 hp
63.5 kW
Fuel use5.3 gal/hour
20.1 l/hour
Drawbar performance
Max power65.33 hp
48.7 kW
Fuel use5.3 gal/hour
20.1 l/hour
Gear 8 used for power test.
Max pull7,779 lbs
3528 kg
Gear 5 used for pull test.
