Ford 6700 Tests


Ford 6700 tractor photo
1977 - 1981
Row-Crop tractor
Series map:
6700
7700
75.5hp
96.7hp
Tractor Tests
NTTL 1217: diesel 8-speed 2WD
NTTL 1244: diesel 16-speed 2WD
Nebraska Tractor Test 1217

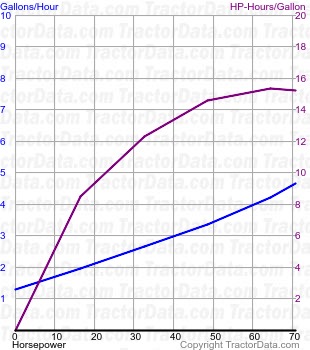

6700 fuel use from test 1217
Nebraska Tractor Test 1217
Diesel 8-speed 2WD
June 14 - 23, 1976
Link: Nebraska Tractor Test 1217 file
PTO performance
Power at rated engine speed70.56 hp
52.6 kW
Fuel use4.6 gal/hour
17.4 l/hour
Power at rated PTO speed70.07 hp
52.3 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power55.68 hp
41.5 kW
Fuel use4.5 gal/hour
17.0 l/hour
Gear 4 used for power test.
Max pull7,131 lbs
3234 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1244

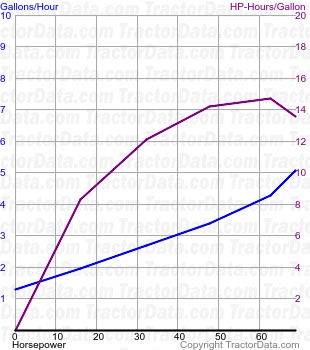

6700 fuel use from test 1244
Nebraska Tractor Test 1244
Diesel 16-speed 2WD
June 20 - 24, 1977
Link: Nebraska Tractor Test 1244 file
PTO performance
Power at rated engine speed68.94 hp
51.4 kW
Fuel use5.1 gal/hour
19.3 l/hour
Power at rated PTO speed68.62 hp
51.2 kW
Fuel use5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power56.17 hp
41.9 kW
Fuel use5.0 gal/hour
18.9 l/hour
Gear 8 used for power test.
Max pull6,787 lbs
3078 kg
Gear 5 used for pull test.
