Ford 6700 Engine


Ford 6700 tractor photo
1977 - 1981
Row-Crop tractor
Series map:
6700
7700
75.5hp
96.7hp
Engine options
Ford 4.2L 4-cyl diesel
Ford 4.4L 4-cyl diesel

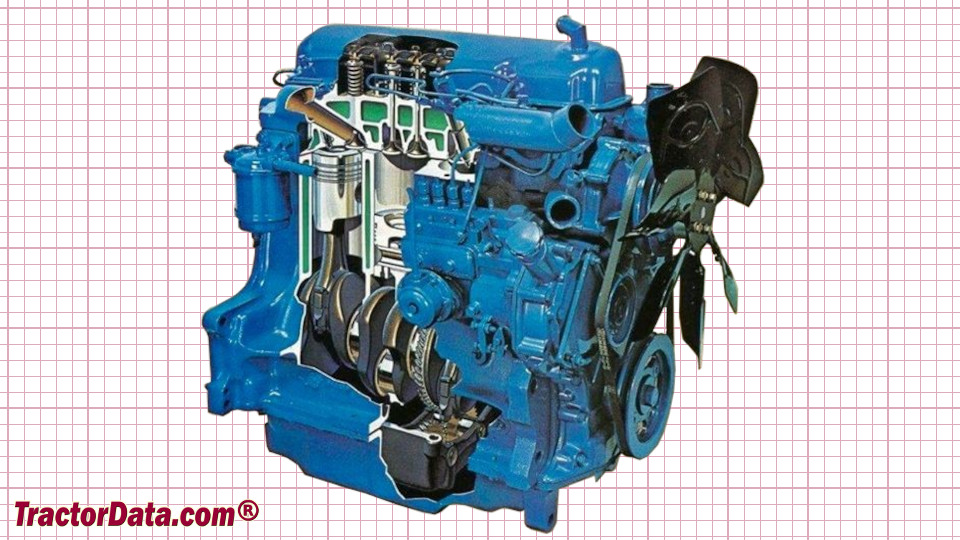

Engine Detail
Ford
diesel
4-cylinder
liquid-cooled
Displacement256 ci
4.2 L
Bore/Stroke4.4094x4.2126 inches
112 x 107 mm
Power (net)72.5 hp
54.1 kW
Power (gross)75.5 hp
56.3 kW
Air cleaneroil bath
Compression16.3:1
Rated RPM2100
Torque200 lb-ft
271.2 Nm
Torque RPM1400
Starter volts12
Oil capacity9 qts
8.5 L
Coolant capacity14.5 qts
13.7 L
 20.5 qts*With cab heat and air-conditioning.
19.4 L
Engine Detail
Ford
diesel
4-cylinder
liquid-cooled
The larger Ford Blue Power Special was available in 1981 only.
Displacement267.9 ci
4.4 L
Bore/Stroke4.4094x4.4094 inches
112 x 112 mm
Rated RPM2100
