Tractors > Ford > 6600

Ford 6600 Tests



Ford 6600 tractor photo
1975 - 1981
Utility tractor
Series map:
5600
6600
7600
69.0hp
75.5hp
96.7hp
Tractor Tests
NTTL 998: gasoline 8-speed 2WD
NTTL 1217: diesel 8-speed 2WD
NTTL 1224: diesel 16-speed 2WD
Nebraska Tractor Test 998

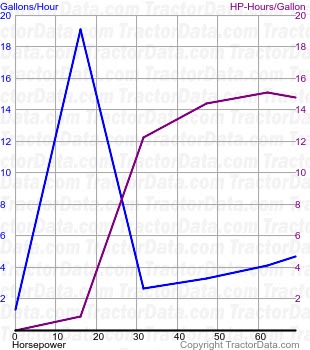

6600 fuel use from test 998
Nebraska Tractor Test 998
Gasoline 8-speed 2WD
November 7 - 25, 1968
Link: Nebraska Tractor Test 998 file
PTO performance
Power at rated engine speed67.31 hp
50.2 kW
Fuel use5.8 gal/hour
22.0 l/hour
Power at rated PTO speed63.73 hp
47.5 kW
Fuel use5.4 gal/hour
20.4 l/hour
Drawbar performance
Max power57.87 hp
43.2 kW
Fuel use6.0 gal/hour
22.7 l/hour
Gear 4 used for power test.
Max pull7247 lbs
3287 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1217

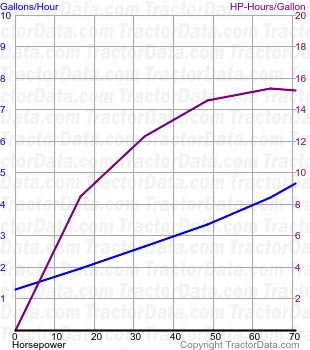

6600 fuel use from test 1217
Nebraska Tractor Test 1217
Diesel 8-speed 2WD
June 14 - 23, 1976
Link: Nebraska Tractor Test 1217 file
PTO performance
Power at rated engine speed70.56 hp
52.6 kW
Fuel use4.6 gal/hour
17.4 l/hour
Power at rated PTO speed70.07 hp
52.3 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power55.68 hp
41.5 kW
Fuel use4.5 gal/hour
17.0 l/hour
Gear 4 used for power test.
Max pull7,131 lbs
3234 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1224

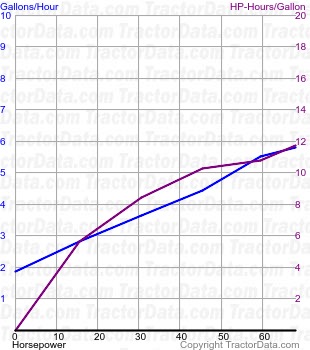

6600 fuel use from test 1224
Nebraska Tractor Test 1224
Diesel 16-speed 2WD
September 22 - October 12, 1976
Link: Nebraska Tractor Test 1224 file
PTO performance
Power at rated engine speed68.10 hp
50.8 kW
Fuel use4.6 gal/hour
17.4 l/hour
Power at rated PTO speed68.05 hp
50.7 kW
Fuel use4.5 gal/hour
17.0 l/hour
Drawbar performance
Max power55.73 hp
41.6 kW
Fuel use4.6 gal/hour
17.4 l/hour
Gear 8 used for power test.
Max pull7,267 lbs
3296 kg
Gear 5 used for pull test.
