Tractors > Ford > 6000

Ford 6000 Tests



Ford 6000 tractor photo
1961 - 1964
Row-Crop tractor
Series map:
5000 Diesel
6000
51.8hp
73.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 783: diesel 10-speed 2WD
NTTL 784: gasoline 10-speed 2WD
NTTL 842: gasoline 10-speed 2WD
NTTL 843: diesel 10-speed 2WD
Nebraska Tractor Test 783

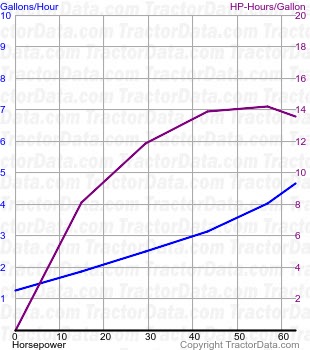

6000 fuel use from test 783
Nebraska Tractor Test 783
Diesel 10-speed 2WD
March 25 - April 4, 1961
Link: Nebraska Tractor Test 783 file
PTO performance
Power at rated engine speed66.2 hp
49.4 kW
Fuel use5.2 gal/hour
19.7 l/hour
Power at rated PTO speed65.35 hp
48.7 kW
Fuel use5.2 gal/hour
19.7 l/hour
Drawbar performance
Max power59.2 hp
44.1 kW
Fuel use5.4 gal/hour
20.4 l/hour
Gear 6 used for power test.
Max pull7,245 lbs
3286 kg
Gear 4 used for pull test.
Nebraska Tractor Test 784

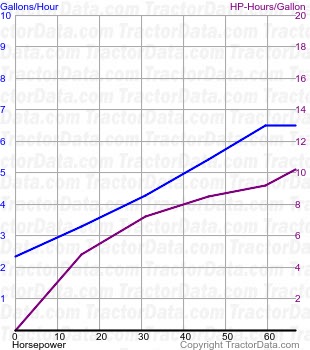

6000 fuel use from test 784
Nebraska Tractor Test 784
Gasoline 10-speed 2WD
April 1 - 8, 1961
Link: Nebraska Tractor Test 784 file
PTO performance
Power at rated engine speed66.9 hp
49.9 kW
Fuel use6.5 gal/hour
24.6 l/hour
Power at rated PTO speed63.12 hp
47.1 kW
Fuel use6.1 gal/hour
23.1 l/hour
Drawbar performance
Max power59.3 hp
44.2 kW
Fuel use6.5 gal/hour
24.6 l/hour
Gear 6 used for power test.
Max pull2,561 lbs
1161 kg
Gear 4 used for pull test.
Nebraska Tractor Test 842

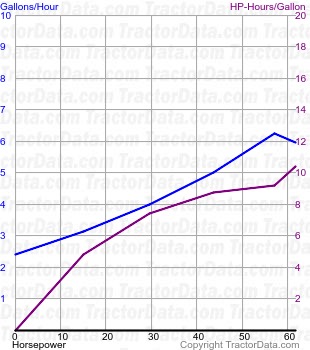

6000 fuel use from test 842
Nebraska Tractor Test 842
Gasoline 10-speed 2WD
June 17 - July 3, 1963
Link: Nebraska Tractor Test 842 file
PTO performance
Power at rated engine speed62.25 hp
46.4 kW
Fuel use5.9 gal/hour
22.3 l/hour
Power at rated PTO speed49.35 hp
36.8 kW
Fuel use4.6 gal/hour
17.4 l/hour
Drawbar performance
Max power53.6 hp
40.0 kW
Fuel use6.7 gal/hour
25.4 l/hour
Gear 6 used for power test.
Max pull7,326 lbs
3323 kg
Gear 4 used for pull test.
Nebraska Tractor Test 843

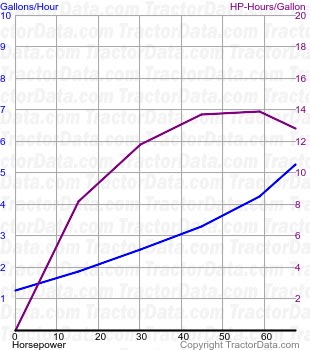

6000 fuel use from test 843
Nebraska Tractor Test 843
Diesel 10-speed 2WD
June 17 - July 2, 1963
Link: Nebraska Tractor Test 843 file
PTO performance
Power at rated engine speed62.72 hp
46.8 kW
Fuel use4.7 gal/hour
17.8 l/hour
Power at rated PTO speed51.84 hp
38.7 kW
Fuel use3.7 gal/hour
14.0 l/hour
Drawbar performance
Max power52.7 hp
39.3 kW
Fuel use4.6 gal/hour
17.4 l/hour
Gear 6 used for power test.
Max pull7,225 lbs
3277 kg
Gear 4 used for pull test.
